SKU: 800-51069C
  • Integrated Intel Graphics - DVI / HDMI / VGA
  • Max 64GB / 4x DDR4 DIMM / Up to 2400
  • 6x SATA 6Gb/s, 2x M.2
  • Up to 6x USB 3.0 (1x USB-C), 6x USB 2.0
  • 2x PCIe X16, 1x PCIe X1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1151 socket for 7th & 6th Generation Intel Core i7/ i5/ i3/Pentium/Celeron Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B250 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
288-pin DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Maximum RAM
64GB

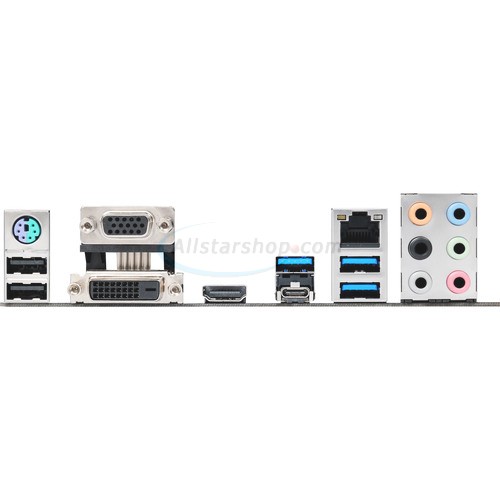

Back Panel I/O
  • 1 x PS/2 keyboard/mouse combo port
  • 3 x USB 3.0 (USB 3.1 Gen1) ports
  • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port
  • 2 x USB 2.0 ports
  • 1 x DVI-D
  • 1 x VGA
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (max. x4)
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIe mode)
  • 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIe mode)
Integrated Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel I219V Gigabit LAN
USB
    Up to 12 x USB ports:
    • 3 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 2 x USB 2.0 ports on Back Panel I/O
    • 4 x USB 2.0 ports via headers
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
1 x PS/2 keyboard/mouse combo port
Form Factor
microATX
Dimensions
9.6" x 8.8"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

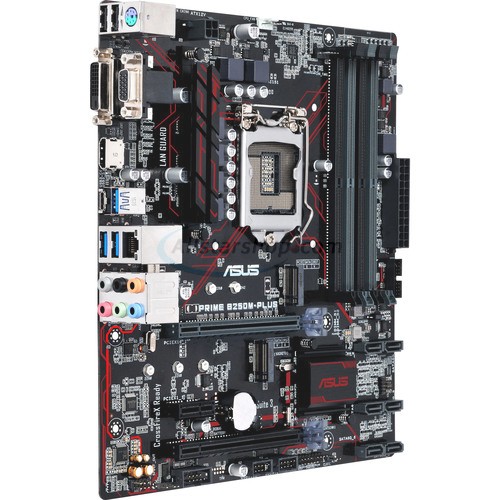

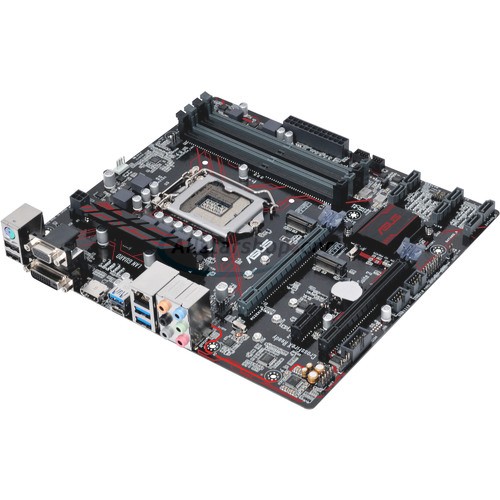

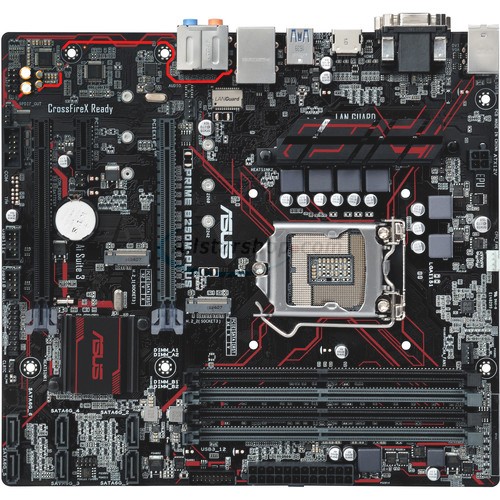

  • PRIME B250M-PLUS motherboard
  • User's manual
  • I/O Shield
  • 1 x Supporting DVD
  • 2 x SATA 6Gb/s cable(s)
  • 2 x M.2 screws
