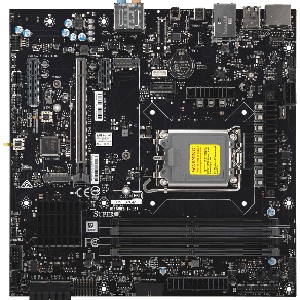

Supermicro C9Q870-M Q870 LGA1851 mATX Motherboard

Support: (408) 503-8000

Supermicro C9Q870-M Q870 LGA1851 mATX Motherboard

SKU:	800-11786A

Integrated Intel Graphics - HDMI, DisplayPort, Thunderbolt 4 USB-C
Max 256GB / 4x DDR5 DIMM / Up to 5600
4x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10, 5
Up to 1x Thunderbolt 4 USB-C, 3x USB 3.2 G2 (1x USB-C), 4x USB 3.2 G1,4x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 4.0 x1

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Intel Core Ultra 5 225 10-Core LGA1851 w/22MB cache CPU (BOX)

: Intel Core Ultra 5 235 14-Core LGA1851 w/24MB cache CPU (BOX)

: Intel Core Ultra 7 265 20-Core LGA1851 w/30MB cache CPU (BOX)

Built upon the functionality and capability of the Intel Core Ultra series in LGA 1851 Socket and the Intel Q870 chipset, the C9Q870-M motherboard provides system performance, power efficiency, and feature sets to address the needs of next-generation computer users.

Description

Specifications

CPU Support

LGA1851 socket for Intel Core Ultra Processors (Series 2)

Number of Processor (s)

Single (Not Included)

Chipset

Intel Q870 chipset

System Bios

AMI 32MB SPI Flash

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-5600 non-ECC UDIMM & CUDIMM

Maximum RAM

256GB

Back Panel I/O

1 x USB 4.0 Type-C port
2 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0 Type-A ports
1 x HDMI
1 x DisplayPort
1 x RJ45 LAN
1 x Audio I/O
2 x Antenna connectors

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 4.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 with M key, type 2280/22110 supports PCIe 5.0 x4 mode
1 x M.2 with M key, type 2280 supports PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10, 5

Integrated Audio

ALC888S HD Audio

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Intel I219-LM 1Gb Ethernet

USB

1 x USB 4.0 Type-C port on Back Panel I/O
1 x USB 3.2 Gen 2x2 Type-C port via header
2 x USB 3.2 Gen 1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen 1 ports via header
2 x USB 2.0 Type-A ports on Back Panel I/O
2 x USB 2.0 ports via header

Serial/Parallel Ports

1 x Serial port via header

Form Factor

Micro-ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
