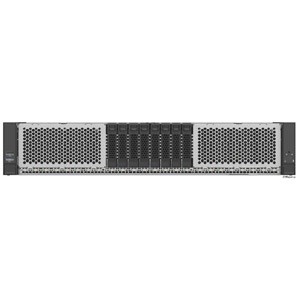

SKU: 850-10214
  • 2x 3rd Gen Intel Xeon Scalable Processors
  • Max 12TB DDR4 3200MHz ECC RDIMM (32 DIMMs)
  • 8x 2.5" SATA bays - hot swap
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

Server Case Form Factor
2U
Processor
  • 3rd Gen Intel Xeon Scalable processors
  • Dual (Not Included)
Chipset
Intel C621A
Type of Memory Supported
DDR4-3200 3DS-RDIMM/3DS-LRDIMM
Maximum Memory Supported
12TB
Number of Memory Slots
32
Slots
  • Riser 1:
    • Supports x32 PCIe lanes, routed from CPU 0
    • PCIe 4.0 support for up to 64 GB/s
  • Riser 2:
    • Supports x32 PCIe lanes, routed from CPU 1
    • PCIe 4.0 support for up to 64 GB/s
  • Riser 3:
    • Supports x16 PCIe lanes, routed from CPU 1
    • PCIe 4.0 support for up to 32 GB/s
Rear I/O Ports
  • 3 x USB 3.0 ports
  • 1 x VGA
  • 1 x RJ45 Remote Management
  • 1 x RJ45 Serial port
Video
Integrated 2D video controller
SATA / SAS
    10 x SATA 6Gb/s:
    • 2 x M.2 -SATA/PCIe
    • 2 x SFF-8643 4-port Mini SAS HD connectors
Power
NO PSU included
Motherboard Manufacturer
Intel Server Board M50CYP2SBSTD
Manageability
IPMI 2.0 & Redfish

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • 1 x 2U 2.5” Chassis with Quick Reference Label affixed to top cover
  • 1 x Intel Server Board M50CYP2SBSTD
  • 12 x 2.5” hot-swap drive bays with drive mounting rails and blanks
  • 1 x Front I/O assembly w/ two USB ports, left side
  • 1 x Front control panel (right) with control/status buttons
  • 1 x 2U Hot-swap backplane spare CYPHSBP2208
  • 16 x DIMM Blank
  • 1 x Splitter power cable, server board connector to HSBP (1, 2, and 3) 2x6 to 3i_2x2- 455/565/720 mm
  • 1 x I2C cable, server board to- 350 mm
  • 1 x 2U Standard Air duct
  • 6 x 2U Spare Fan Kit CYPFAN2UKIT
  • 2 x Processor carrier clip

Compatible Accessories

CPU

Intel Xeon Silver 4310 12-Core 2.1GHz w/18MB LGA4189 CPU (Box)
  • 12x Cores / 24x Threads / Turbo Boost: 3.3 GHz
  • Supported Memory: DDR4-2667
  • Max # of PCIe 4.0 Lane: 64
  • TDP: 120W
Manufacturer: Intel
Mfg P/N: BX806894310
Availability: Usually ships with 1-2 business days
Intel Xeon Silver 4314 16-Core 2.4GHz w/24MB LGA4189 CPU (Box)
  • 16x Cores / 32x Threads / Turbo Boost: 3.4 GHz
  • Supported Memory: DDR4-2667
  • Max # of PCIe 4.0 Lane: 64
  • TDP: 135W
Manufacturer: Intel
Mfg P/N: BX806894314
Availability: Usually ships with 1-2 business days
Intel Xeon Silver 4316 20-Core 2.3GHz w/30MB LGA4189 CPU (Box)
  • 20x Cores / 40x Threads / Turbo Boost: 3.4 GHz
  • Supported Memory: DDR4-2667
  • Max # of PCIe 4.0 Lane: 64
  • TDP: 150W
Manufacturer: Intel
Mfg P/N: BX806894316
Availability: Temporarily out of stock

Memory

Kingston 16GB DDR4-3200 ECC Reg CL22 2Rx8 288-pin RDIMM
  • PC4-25600
  • Dual-rank x8
Manufacturer: Kingston
Mfg P/N: KSM32RD8/16HDR
Availability: Usually ships with 1-2 business days
Kingston 16GB DDR4-3200 ECC Reg CL22 SRx4 288-pin RDIMM
  • PC4-25600
  • Single-rank x4
Manufacturer: Kingston
Mfg P/N: KSM32RS4/16HDR
Availability: Usually ships with 1-2 business days

Networking Card

Intel X710-T2L for OCP 3.0 Ethernet Network Adapter
  • 10GbE/5Gbe/2.5GbE/1GbE/100Mb Data Rate Per Port
  • RJ45 Category 6, Category 6A, Category 5e up to 100m
  • 8.0GT/s x 8 Lane
Manufacturer: Intel
Mfg P/N: X710T2LOCPV3
Availability: Usually ships with 1-2 business days

Power Supplies

Tyan AXX1300TCRPS 1300W AC CRPS 80+ Titanium efficiency power supply
Manufacturer: Tyan
Mfg P/N: AXX1300TCRPS-T
Availability: Temporarily out of stock

Case Accessories

Tyan CYP25HSCARRIER 8x 2.5" Hot-Swap Front Drive Bay Module
Manufacturer: Tyan
Mfg P/N: CYP25HSCARRIER-T
Availability: Temporarily out of stock
Tyan CYP2URISER1STD 2U PCIe Riser
  • Slot #1 option Three PCIe slot Riser
Manufacturer: Tyan
Mfg P/N: CYP2URISER1STD-T
Availability: Temporarily out of stock
Tyan CYP2URISER2STD 2U PCIe Riser
  • Slot #2 option Three PCIe slot Riser
Manufacturer: Tyan
Mfg P/N: CYP2URISER2STD-T
Availability: Temporarily out of stock
Tyan CYP2URISER3STD 2U PCIe Riser
  • Slot #3 option Two PCIe slot Riser
Manufacturer: Tyan
Mfg P/N: CYP2URISER3STD-T
Availability: Temporarily out of stock

Cooling

Tyan CYP2UHSSTD 2U Heat-Sink
Manufacturer: Tyan
Mfg P/N: CYP2UHSSTD-T
Availability: Temporarily out of stock
