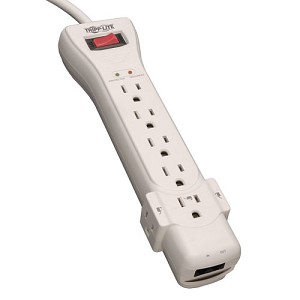

SKU: A319888
  • 2520 joules AC surge suppression
  • 7 outlets / 15-ft. cord
  • 15 A Line Current
  • Modem/fax surge protection
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Warranty
Standard Warranty
Lifetime
General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
SUPER7TEL15
Manufacturer Website Address
Brand Name
Tripp Lite
Product Line
ProtectIT
Product Type
Surge Suppressor
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacles
7 x NEMA 5-15R
Dataline Protection
RJ-11
Protection Type
  • Full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
  • Power Description
    Input Voltage
    120 V AC
    Output Voltage
    120 V AC
    Current
    15 A Line Current
    Frequency
    50 Hzor 60 Hz
    Power Handling
    1.80 kVA
    Surge Energy Rating
    3 kJ
    Filtering
    EMI/RFI Filtering Up to 20 dB
    Circuit Breaker
    15 A
    Power Switch
    On/Off
    Controls/Indicators
    Status Indicators
    Protection present
    Physical Characteristics
    Power Cord/Cable
    15 ft
    Form Factor
    Wall-mountable
    Dimensions
    1.54" Height x 2.72" Width x 10.30" Depth
    Weight (Approximate)
    2.13 lb
    Miscellaneous
    Additional information
  • Fail-safe thermal fusing protects against fire and other damage in the event of an extreme, extended overvoltage or surge condition
  • Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 5 transformers total
  • Keyhole mounting tabs enable wall mounting
  • Space-saving right angle input plug
  • 14 gauge, SJT Input cord
  • Compatibility
  • Ideal for any desktop, network or home computing application requiring AC and dialup or DSL modem line protection
  • Certifications & Standards
  • UL1449 (let through rating 330V)
  • IEEE 587 Category A and B
  • UL1363
  • cUL
  • FCC Part 68
  • UL497A
  • The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: Limited Lifetime Warranty
    • Warranty Provider: Tripp Lite
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
    • Technical Support: Tripp Lite (773) 869-1234

    Package Contents

    • ProtectIT 7 Outlets 120V Surge Suppressor
    • SUPER7TEL15 Surge Suppressor
    • 6-ft. telephone cord
    • Instruciton manual with warranty information
