SKU: 995-12538G
  • 2250 W / 3000 VA
  • Full Load: 3.5 min. / Half Load: 10 min.
  • 1 x NEMA L5-30P Input / 8 x NEMA 5-15/20R / 1 x L5-30R
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Technical Information
Plug/Connector Type
NEMA L5-30P
Receptacles
  • 1 x NEMA L5-30R
  • 8 x NEMA 5-15/20R
  • Emergency Power OFF
    Yes
    Power Description
    Load Capacity (VA)
    3 kVA
    Load Capacity (Watt)
    2.25 kW
    Input Voltage
    110 V AC
    Output Voltage
    120 V AC
    Management
    Network Management
    SNMP Manageable
    Interfaces/Ports
    Serial Port
    Yes
    USB
    Yes
    Battery Information
    Backup/Run Time (Full Load)
    3.50 Minute
    Backup/Run Time (Half Load)
    10 Minute
    Maximum Battery Recharge Time
    4.50 Hour
    Hot Swappable
    Yes
    Physical Characteristics
    Height
    3.5"
    Depth
    19.5"
    Rack Height
    2U
    Form Factor
    Tower/Rack Mountable
    Weight (Approximate)
    62.80 lb
    Miscellaneous
    Certifications & Standards
    • UL1778
    • CSA
    • NOM
    • FCC Part 15 Category B (EMI)
    Software Included
    PowerAlert Software
    Green Compliant
    Yes
    Green Compliance Certificate/Authority
    ENERGY STAR
    Warranty
    Limited Warranty
    2 Year

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 2 years
    • Warranty Provider: Tripp Lite
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
    • Technical Support: Tripp Lite (773) 869-1234

    Package Contents

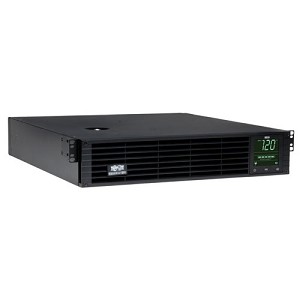

    • SMART2200RMXLN UPS system with Pre-installed SNMPWEBCARD

    • PowerAlert Software CD

    • USB Cable

    • Serial Cable

    • EPO Cable

    • 4 Post Installation Kit

    • Instruction Manual
