SKU: 995-12517A
  • 1600 W / 2200 VA
  • Full Load: 7 min. / Half Load: 19 min.
  • 1 x NEMA 5-20P Input / 2 x NEMA 5-15/20R / 7 x NEMA 5-15R
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

Switching Time
4 ms
Plug/Connector Type
NEMA 5-20P
Receptacles
  • 7 x NEMA 5-15R
  • 2 x NEMA 5-20R
    • Input Voltage
    110V AC
    Load Capacity
    2200VA/1600W
    Input Voltage Range
    120V AC Single-phase
    Frequency
    60Hz
    Filtering
    EMI / RFI
    Output Voltage
    120V AC Single-phase
    Network Management
    SNMP Manageable Optional
    Emergency Power OFF
    Yes
    Alarm
  • On Battery
  • Overload
  • Low Battery
    • Overload Protection
    20A input breaker
    Status Indicators
    Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
    Modular Slots
    1 x Communications Slot
    Interfaces/Ports
    2 x USB
    Battery Life
    3 Year(s) to 6 Year(s)
    Batteries
    Sealed Lead-acid User-replaceable Hot-swappable
    Battery Recharge Time
    4 Hour(s)
    Backup/Run Time
    7 Minute(s) 2200VA Full-load
    Humidity
    0 to 95% Non-condensing Relative Humidity
    Temperature
    32 °F (0 °C) to 104 °F (40 °C) Operating
    Dimensions
    14.25" Height x 9.25" Width x 12" Depth
    Power Cord/Cable
    8 ft
    Shipping Dimensions
    16" Height x 14.75" Width x 19.75" Depth
    Shipping Weight
    58.8 lb
    Form Factor
    Tower
    Weight
    52.4 lb
    Additional information
  • 2200VA / 1600 watt output capacity accommodates a variety of server, networking and telecom devices
  • High power density 2.2kVA UPS system occupies only 106 square inches of floorspace with a height of only 14.25 inches
  • Compatible with North American 120V / 60 Hz power as found in the USA, Canada and Mexico
  • Offers 7 minutes runtime with a full load of 2200VA and 19 minutes with a half load of 1100VA
  • Line interactive voltage regulation corrects severe brownouts and overvoltages from 79 to 147v back to normal 120v levels without using battery power
  • 9 total outlets (7 NEMA5-15R; 2 NEMA5-15/20R)
  • Includes NEMA 5-20 straight blade 20 amp input plug connection; package includes optional user installable NEMA 5-15 input plug connection
  • Notification of system status via 5 LEDs and multi-function audible alarms
  • Included PowerAlert Software provides e-mail or pager notification of power problems and the simultaneous automatic unattended shutdown of multiple servers
  • 4 built-in communications ports (2-DB9, 2-USB) for remote monitoring and unattended shutdown
  • Slot for SNMP/web card (part#: SNMPWEBCARD) and environmental sensor (part#: ENVIROSENSE) for remote communications in large IP environments
  • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again
  • Communication ports support on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
  • 3 pairs of customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or automatic "load shedding" of less critical loads to extend battery runtime for the most critical equipment
  • Built-in Emergency Power Off (EPO) interface supports emergency shutoff in large facilities
  • Hot-swappable / user replaceable batteries allow on-site battery replacement through the front panel without powering off connected equipment or removing the UPS from the rack
  • UPS battery set ships fully assembled and ready for use, no time consuming, connection of individual internal batteries by user is necessary
  • UL (USA), cUL (Canada), NOM (Mexico), FCC Class A
  • $250,000 Ultimate Lifetime Insurance. No warranty cards required for coverage!
  • 2 year manufacturers product warranty
    • System Requirements
    TYPICAL APPLICATIONS: Ideal for protection of sensitive electronics in any application calling for upright tower UPS protection. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems.
    Certifications & Standards
    UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 2 years
    • Warranty Provider: Tripp Lite
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
    • Technical Support: Tripp Lite (773) 869-1234

    Package Contents

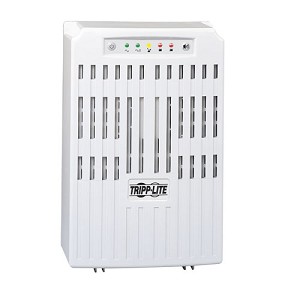

    • SMART2200VS UPS System
    • PowerAlert Software and cabling
    • Warranty information
    • Instruction manual
