SKU: 995-12518K
  • 800 W / 1000 VA
  • Full Load: 5.3 min. / Half Load: 15 min.
  • 6 x NEMA 5-15R
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Warranty
Standard Warranty
2 Year
General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
SMART1000RM2U
Manufacturer Website Address
www.tripplite.com
Brand Name
Tripp Lite
Product Line
SmartPro
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacles
6 x NEMA 5-15R
Power Description
Load Capacity
1 kVA/800 W
Input Voltage
110 V AC
Input Voltage Range
120 V AC Single-phase
Output Voltage
120 V AC Single-phase
Frequency
60 Hz
Waveform Type
Sine Wave
Filtering
EMI / RFI
Management
Network Management
SNMP Manageable Optional
Overload Protection
15A input breaker
Alarm
  • On Battery
  • Overload
  • Low Battery
    • Emergency Power OFF
    Yes
    Controls/Indicators
    Status Indicators
    5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.
    Interfaces/Ports
    Interfaces/Ports
  • 1 x DB-9
  • 1 x USB
    • Modular Slots
    1 x Communications Slot
    Battery Information
    Batteries
    Sealed Lead Acid User-replaceable Hot-swappable
    Backup/Run Time
  • 0.15 Hour 1 kW Full Load
  • 0.35 Hour 500 W Half Load
    • Battery Life
    26297.44 Hour to 52594.88 Hour
    Battery Recharge Time
    4 Hour Minimum
    Environmental Conditions
    Temperature
    32°F (0°C) to 104°F (40°C) Operating
    Humidity
    0 to 95% Non-condensing Relative Humidity
    Physical Characteristics
    Form Factor
    2U Rack-mountable
    Power Cord/Cable
    10 ft
    Dimensions
    3.50" Height x 17.50" Width x 13.50" Depth
    Weight (Approximate)
    35 lb
    Miscellaneous
    Additional information
  • SMART1000RM2U line interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network grade AC surge suppression
  • 1000VA / 800 watt power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic devices
  • Supports 2U rackmount installation in 4 post rack enclosures with included mounting accessories, 2 post rackmount mountable with optional 2POSTRMKIT accessory, upright tower installation supported with optional 2-9USTAND accessory
  • Large internal batteries offer runtimes of 21 minutes at half load (500VA / 400 watts) and 9 minutes at full load (1000VA / 800 watts)
  • Maintains regulated 120V nominal output during brownouts and overvoltages from 83 to 147V

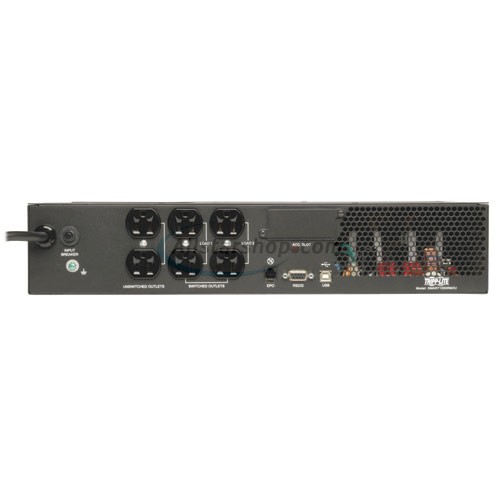

  • Includes 6 UPS-supported outlets arranged in 2 individually controllable load banks (2 outlets per bank) that can be powered off and back on again via software interface
  • PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands
  • Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise management software is also available for select opportunies
  • Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
  • Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected devices
  • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW)
  • Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter
  • Emergency Power Off (EPO) interface with cable
  • Multi-function audible alarms and set of 5 front panel LEDs
  • Network-grade AC surge suppression
  • Attractive all-black color scheme
  • UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary
  • Two year warranty with $250,000 connected equipment insurance (USA & Canada only)
    • System Requirements
    TYPICAL APPLICATIONS: Ideal for rackmount or upright tower protection of fileservers, network accessories and telecommunications equipment in server rooms, internetworking closets, co-location racks, kiosks and a variety of other locations. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems.
    Certifications & Standards
    UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 2 years
    • Warranty Provider: Tripp Lite
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
    • Technical Support: Tripp Lite (773) 869-1234

    Package Contents


    • SmartPro 1000RM2U UPS
    • SMART 1000RM2U UPS System
    • Mounting hardware for 4 post rackmount installation
    • Cabling for USB & DB9 monitoring and EPO switching
    • PowerAlert unattended shutdown and UPS/Power monitoring software
    • Warranty information
