SKU: 995-12517E
  • 1920 W / 2200 VA
  • Full Load: 4.5 min. / Half Load: 12 min.
  • 1 x NEMA 5-20P Input / 4 x NEMA 5-15R / 4 x NEMA 5-15/20R
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

Battery Enclosure Type
Internal
Height (Rack Units)
2U
Rack Size
19"
Depth
19 in
Height
3.5 in
Weight
64.2 lbs
Power Device
Input Voltage
AC 100/110/120 V
Frequency Required
50/60 Hz
Input Connector(s)
Power NEMA 5-20
Output Voltage
AC 100/110/120 V + 6% / - 14% ( 50/60 Hz )
Output connector(s)
8 x power NEMA 5-15, power NEMA 5-15/20
Power Output Connectors Details
4 x power NEMA 5-15
4 x power NEMA 5-15/20
Max Electric Current
20 A
Power Provided
1600 Watt / 2200 VA
Output Waveform
Sinewave
Circuit Protection
Circuit breaker
Battery
Voltage Provided
48 V
Run Time (Up To)
6 min at full load
Recharge Time
4.5 hour(s)
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
1 x USB
Miscellaneous
Cables Included
1 x power cable - 10 ft
1 x serial cable
1 x USB cable
Rack Mounting Kit
Included
Equipment Protection Value
250000 US Dollars
Features
Audible alarm, Automatic Voltage Regulation (AVR), LED indicators, overvoltage protection, undervoltage protection, disconnect switch
Compliant Standards
CSA, NOM, UL 1778, FCC Part 15 B, RoHS
Pricing Type
Trade Agreements Act (TAA) Compliance
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
0 - 95%
Dimensions & Weight (Shipping)
Shipping Width
23.5 in
Shipping Depth
20 in
Shipping Height
9 in

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 2 years
  • Warranty Provider: Tripp Lite
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
  • Technical Support: Tripp Lite (773) 869-1234

Package Contents

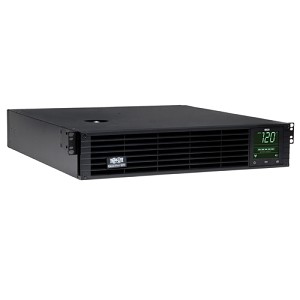

  • SmartPro SM2200RMXL2UTAA 2200 VA Tower/Rack Mountable UPS
  • PowerAlert Software CD-ROM
  • USB Cable Serial Cable
  • EPO Cable
  • Owner's Manual with Warranty Information
  • Adjustable Mounting Rail Kit
