SKU: A318781
  • 500 W / 1000 VA
  • Full Load: 3.5 min. / Half Load: 14 min.
  • 8 x NEMA 5-15R
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Dataline Protection
RJ-45 Phone/Fax/Internet/DSL
Plug/Connector Type
NEMA 5-15P
Receptacles
8 x NEMA 5-15R
Switching Time
4 ms
Filtering
EMI / RFI
Surge Energy Rating
480J
Waveform Type
Pulse-width Modulated Sine Wave
Load Capacity
1000VA / 500W
Input Voltage Range
120V AC Single-phase
Frequency
60Hz
Output Voltage
120V AC Single-phase
Input Voltage
110V AC
Audible Alarms
On Battery
Network Manageability
Not Applicable
Status Indicators
4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation
Interfaces/Ports
1 x USB
Backup/Run Time
  • 7 Minute(s) 1000VA Full-load
  • 18 Minute(s) 500VA Half-load
    • Battery Life
    3 Year(s) to 6
    Batteries
    Sealed Lead-acid User-replaceable
    Battery Recharge Time
    4 Hour(s)
    Humidity
    0 to 95% Non-condensing Relative Humidity
    Temperature
  • 32 °F (0 °C) to 104 °F (40 °C) Operating
  • 5 °F (-15 °C) to 122 °F (50 °C) Storage
    • Shipping Dimensions
    14" Height x 8.5" Width x 10.5" Depth
    Shipping Weight
    24.6 lb
    Weight
    21 lb
    Color
    Black
    Form Factor
    Wall-mountable Tower
    Power Cord/Cable
    6 ft
    Dimensions
    10.75" Height x 5.25" Width x 7.25" Depth
    Country of Origin
    China
    Additional information
  • OMNIVS1000 Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
  • Supports entry level PCs up to 60 minutes during blackouts to enable shutdown without data loss
  • Regulates brownouts as low as 83 volts back to usable levels without using battery power
  • 6 UPS battery supported outlets, plus 2 additional surge suppression-only outlets
  • USB port and cable enables unattended shutdown in the case of extended power failure
  • PowerAlert software available via free download from www.tripplite.com
  • Single line phone suppression protects standard dialup/DSL phone connection
  • Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
  • 1000VA / 500 watt power handling ability supports a variety of sensitive electronic equipment
  • 7 minutes full load runtime (1000VA / 500 watts), 18 minutes half load runtime (500VA / 250 watts)
  • Supports battery replacement via built-in access panel
  • 2 year product warranty.
  • $200,000 connected equipment Insurance (USA & Canada Only).
    • System Requirements
    TYPICAL APPLICATIONS:Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common.
    Certifications & Standards
    UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 2 years
    • Warranty Provider: Tripp Lite
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
    • Technical Support: Tripp Lite (773) 869-1234

    Package Contents

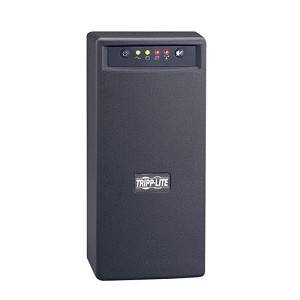

    • OMNIVS1000 Line Interactive UPS
    • USB and telephone cable
    • User manual with warranty information
