SKU: 995-12554
  • 850 VA / 425 W
  • Full Load: 2.8 min. / Half Load: 13 min.
  • 12 x power NEMA 5-15
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Device Type
UPS - external
Depth
7 in
Height
3.5 in
Weight
9.5 lbs
Power Device
UPS Technology
Off-line
Input Voltage
AC 120 V
Input Connector(s)
Power NEMA 5-15
Output Voltage
AC 115/120 V + 5% / - 5% ( 60 Hz )
Power Output Connectors Details
6 x power NEMA 5-15 ( UPS and surge )
6 x power NEMA 5-15 ( surge )
Max Electric Current
10 A
Power Capacity
425 Watt / 850 VA
Dataline Surge Protection
Phone line - RJ-11 - 1 input line / 1 output line
Output Waveform
Sinewave
Circuit Protection
Circuit breaker
Battery
Voltage Provided
12 V
Run Time (Up To)
2.8 min at full load
13 min at half load
Networking
Remote Management Interface
USB
Expansion / Connectivity
Interfaces
1 x USB
Miscellaneous
Cables Included
1 x power cable - integrated - 6 ft
1 x USB cable - external
Equipment Protection Value
100000 US Dollars
Features
Wall mountable , audible alarm, LCD display, cold-start function, disconnect switch
Compliant Standards
CSA, NOM, UL 1778, FCC Part 15 B, FCC Part 68, RoHS
Software / System Requirements
Software Included
TrippLite PowerAlert (free download)
Manufacturer Warranty
Service & Support
3 years warranty
Service & Support Details
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
0 - 95% (non-condensing)
Dimensions & Weight (Shipping)
Shipping Width
15 in
Shipping Depth
10 in
Shipping Height
4.5 in
Shipping Weight
10.1 lbs

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Tripp Lite
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
  • Technical Support: Tripp Lite (773) 869-1234

Package Contents

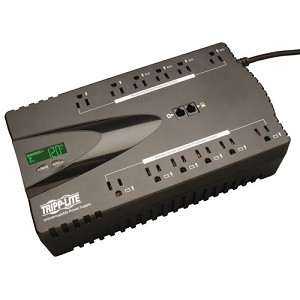

  • ECO850LCD UPS System
  • USB cable
  • Instruction manual
