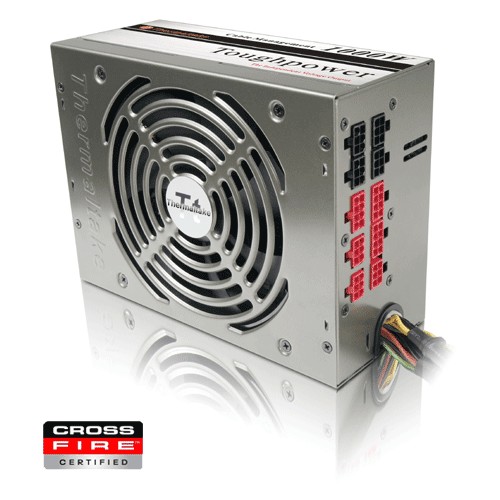

Thermaltake Toughpower Cable Management W0132RU 1000W ATX12V PSU (ATI CrossFire certified) - (Discontinued)

Support: (800)988-1088

Thermaltake Toughpower Cable Management W0132RU 1000W ATX12V PSU (ATI CrossFire certified) - (Discontinued)

SKU:	992-63039C

87% + efficiency / 80 plus Certified / ATI CrossFire Certified
4 x +12V rails - Combined 86A
3 x 8-pin PCI-e and 3 x 6-pin PCI-e connectors
MTBF: 120,000 hours
ATX 12V 2.2 / EPS 12V 2.91

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Samsung 9100 Pro 2TB PCIe 5.0 x4 M.2 SSD

: Samsung 9100 Pro 4TB PCIe 5.0 x4 M.2 SSD

: PNY GeForce RTX 5070 12GB Triple Fan PCIe 5.0 Video Card

Proper airflow within computer system plays an extremely important role in making sure CPU, Graphic Card(s), Hard Drives and other critical components are getting adequate cooling. Thermaltake Cable Management Technology allows users to only use the cables needed from the power supply that reduces amount of cable clutter within the computer to improve cooling and reduce system noise.

Features

Stable 1000W continuous output, peak power at 1100W (at 50Ž operating environment)

Four independent & dedicated +12V rails(12V1,12V2,12V3,12V4) provides superior performance for PC system. (combined loading of 82A)

NEW! Three 8pin and three 6pin PCI-E connectors design supports Multi-GPU Graphic card.

Supports Dual Core CPU / Quad Core CPU / Nvidia SLI & Quad SLI and all Multi-Core GPU technologies.

Independent Voltage Circuit: offers unflappable current delivery under heavy load.

Strict voltage regulation (+/-3%): provides steady voltage for system.

Active Power Factor Correction (PF>0.99) and high efficiency (up to 87%).

Industrial grade components (capacitor, transformer, etc)

High reliability: MTBF>120,000 hours.

Quiet and reliable 14cm ball-bearing fan.

Protections: Over Current, Over Voltage, Under Voltage, Over Temperature, Over Power, and Short-Circuit protection.

Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.

	Quad +12V Rails and EPS Structure		Hi-Tech Black Coating
	8 S-ATA Connectors		Silent 140mm Fan
	Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%

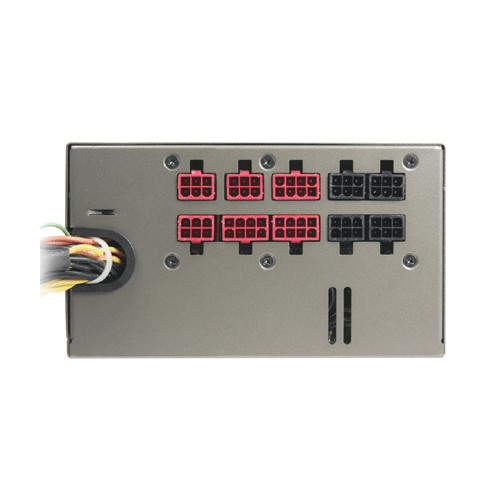

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 8	4-pin Floppy x 2	SATA x 8	4-pin 12V x 1	6-pin PCI-Express x 3
8-pin PCI-Express x 3	4pin+4 EPS12V x 1	8-pin-to-6-pin PCI-Express x 3

Description

Stable 1000W continuous output, peak power at 1100W (at 50Ž operating environment)

Four independent & dedicated +12V rails(12V1,12V2,12V3,12V4) provides superior performance for PC system. (combined loading of 82A)

NEW! Three 8pin and three 6pin PCI-E connectors design supports Multi-GPU Graphic card.

Supports Dual Core CPU / Quad Core CPU / Nvidia SLI & Quad SLI and all Multi-Core GPU technologies.

Independent Voltage Circuit: offers unflappable current delivery under heavy load.

Strict voltage regulation (+/-3%): provides steady voltage for system.

Active Power Factor Correction (PF>0.99) and high efficiency (up to 87%).

Industrial grade components (capacitor, transformer, etc)

High reliability: MTBF>120,000 hours.

Quiet and reliable 14cm ball-bearing fan.

Protections: Over Current, Over Voltage, Under Voltage, Over Temperature, Over Power, and Short-Circuit protection.

Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.

	Quad +12V Rails and EPS Structure		Hi-Tech Black Coating
	8 S-ATA Connectors		Silent 140mm Fan
	Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 8	4-pin Floppy x 2	SATA x 8	4-pin 12V x 1	6-pin PCI-Express x 3
8-pin PCI-Express x 3	4pin+4 EPS12V x 1	8-pin-to-6-pin PCI-Express x 3

Specifications

Efficiency

87%+

Fans

140mm @ 2300 RPM

MTBF

120,000 hours

Protection

Over/Under Voltage

Over Current

Over Load

Over Temperature

Short Circuit

Version Support

2.2

Frequency

47~63Hz

Output Power

1000W

Output Voltage

Output Voltage	Min. Load	Max. Load	Regulation	Noise
+3.3V	0.5A	30A	+3,-3%	50mV
+5V	0.5A	30A	+3,-3%	50mV
+12V1	1A	20A	+3,-3%	120mV
+12V2	1A	20A	+3,-3%	120mV
+12V3	1A	36A	+3,-3%	120mV
+12V4	1A	36A	+3,-3%	120mV
-12V	0A	0.8A	+10,-10%	120mV
+5Vsb	0A	3A	+3,-5%	50mV
+12V Combined	86A

Input Voltage

115VAC~230VAC

Connectors

1 x 20+4-pin main connector

1 x 4+4-pin power connector

1 x 8-pin power connector

8 x 4-pin peripheral connector

2 x floppy connector

8 x 5-pin SATA connector

3 x 8-pin PCI-e connector

3 x 6-pin PCI-e connector

Certifications & Standards

80 Plus Certified

ATI CrossFire Certified

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 5 years
Warranty Provider: Thermaltake
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Thermaltake at (800)988-1088 Or visit Thermaltake customer service online.
Technical Support: Thermaltake (800)988-1088 or visit Thermaltake technical support online.
