Thermaltake Toughpower Cable Management W0106RU 700W ATX12V PSU (nVidia SLI certified) - (Discontinued)

Support: (800)988-1088

Thermaltake Toughpower Cable Management W0106RU 700W ATX12V PSU (nVidia SLI certified) - (Discontinued)

SKU:	992-63035A

85%+ efficiency / 80 plus Certified / nVidia SLI Certified
4 x +12V rails - Combined 56A
1 x 8-pin PCI-e and 2 x 6-pin PCI-e connectors
MTBF: 120,000 hours

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Intel Core Ultra 5 235 14-Core LGA1851 w/24MB cache CPU (BOX)

: PNY GeForce RTX 5090 32GB Triple Fan PCIe 5.0 Video Card

: MSI B850 Gaming Plus WIFI AMD B850 AM5 ATX Motherboard

Proper airflow within computer system plays an extremely important role in making sure CPU, Graphic Card(s), Hard Drives and other critical components are getting adequate cooling. Thermaltake Cable Management Technology allows users to only use the cables needed from the power supply that reduces amount of cable clutter within the computer to improve cooling and reduce system noise.

Features:

Complies with ATX 12V 2.2 & EPS 12V version 2.91
SLI and Dual Core CPU ready

Next generation four +12V rails(12V1, 12V2, 12V3, 12V4) supports high-end graphic card and PC system (combined loading of 56A)
Independent Voltage Circuit: offers unflappable current delivery under heavy load and makes voltage output more stable
Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%)
Extremely good voltage regulation (±3%): provides steady voltage for system
Industrial grade components (capacitor, transformer, etc)
High reliability: MTBF>120,000 hours
Mirror effect housing and reliable 14cm ball-bearing fan
Protections: Over Current, Over Voltage, and Short-Circuit protection
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified
Dimensions: 16cm(L)x15cm(W)x8.5cm(H)

	Quad +12V Rails and EPS Structure		Intelligent Cable Management
	Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%		Silent 140mm Fan

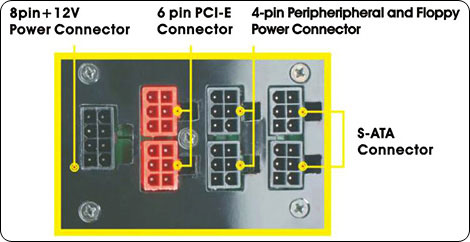

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 7	4-pin Floppy x 1	SATA x 6	4-pin 12V x 1	8-pin PCI-Express x 2
4pin+4 12V x 1	8-pin-to-6-pin PCI-Express x 1

Description

Complies with ATX 12V 2.2 & EPS 12V version 2.91
SLI and Dual Core CPU ready

Next generation four +12V rails(12V1, 12V2, 12V3, 12V4) supports high-end graphic card and PC system (combined loading of 56A)
Independent Voltage Circuit: offers unflappable current delivery under heavy load and makes voltage output more stable
Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%)
Extremely good voltage regulation (±3%): provides steady voltage for system
Industrial grade components (capacitor, transformer, etc)
High reliability: MTBF>120,000 hours
Mirror effect housing and reliable 14cm ball-bearing fan
Protections: Over Current, Over Voltage, and Short-Circuit protection
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified
Dimensions: 16cm(L)x15cm(W)x8.5cm(H)

	Quad +12V Rails and EPS Structure		Intelligent Cable Management
	Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%		Silent 140mm Fan

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 7	4-pin Floppy x 1	SATA x 6	4-pin 12V x 1	8-pin PCI-Express x 2
4pin+4 12V x 1	8-pin-to-6-pin PCI-Express x 1

Specifications

Efficiency

85%

Fans

140mm @ 1900 RPM

MTBF

120,000 hours

Version Support

2.2

Frequency

47~63Hz

Output Power

700W

Output Voltage

Output Voltage	Min. Load	Max. Load	Regulation	Noise
+3.3V	0.5A	30A	+3,-3%	50mV
+5V	2.0A	28A	+3,-3%	50mV
+12V1	1A	18A	+3,-3%	120mV
+12V2	1A	18A	+3,-3%	120mV
+12V3	1A	18A	+3,-3%	120mV
+12V4	1A	18A	+3,-3%	120mV
-12V	0A	0.8A	+9,-5%	120mV
+5Vsb	0A	3A	+5,-3%	50mV
+12V Combined	56A

Input Voltage

100V AC to 240V AC

Connectors

1 x 4-pin SP4 Floppy Drive

7 x 4-pin LP4 Peripheral Device

2 x 6-pin PCI-E

1 x 8-pin EPS12V

1 x 24-pin ATX Motherboard

Dimensions

3.35" Height x 5.91" Width x 6.3" Depth

Certifications & Standards

CE, CB, TUV, FCC, UL, CUL, BSMI, nVIDIA SLi

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 5 years
Warranty Provider: Thermaltake
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Thermaltake at (800)988-1088 Or visit Thermaltake customer service online.
Technical Support: Thermaltake (800)988-1088 or visit Thermaltake technical support online.
