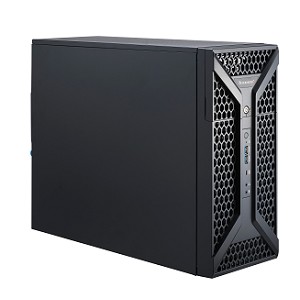

Supermicro SYS-531A-IL 531A-IL W680 LGA1700 Mid-Tower w/ 668W PSU

Supermicro 531A-IL W680 LGA1700 Mid-Tower w/ 668W PSU

Support: (408) 503-8000

Supermicro 531A-IL W680 LGA1700 Mid-Tower w/ 668W PSU

SKU:	850-11753A

LGA1700 13th/12th Gen Intel Core Processor
Max 128GB DDR5 4800MHz (4 CIMMs)
4 x 3.5" SATA bays - Fix - RAID 0, 1, 5, 10
Intel i225V + i219LM Gigabit Ethernet
2x PCIe 5.0 x16, 2x PCIe 3.0 x4, 1x PCI

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: PNY NVIDIA T1000 4GB GDDR6 PCIe 3.0 mDP Graphic Card

: Crucial P3 Plus 4TB NVMe PCIe 4.0 M.2 SSD

: WD Black SN770 PCIe 4.0 NVMe M.2 2280 SSD - 2TB

The SYS-531A-IL is a mid-tower barebone workstation system designed for small and medium sized businesses. The workstation can be proposed-built and configured for professional video editing, 3D modeling or other professional applications.

Description

Specifications

Server Case Form Factor

Mid-Tower

Processor

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Chipset

Intel W680 chipset

Bios

UEFI AMI BIOS

Type of Memory Supported

DDR5-4800 ECC/Non-ECC UDIMM

Installed Memory

Maximum Memory Supported

128GB

Number of Memory Slots

Slots

2 x PCIe 5.0 x16 (single x16, dual x8/x8)
2 x PCIe 3.0 x4
1 x PCI

Rear I/O Ports

1 x USB 3.2 Gen 2x2 Type-C port
3 x USB 3.2 Gen 2 Type-A ports
2 x USB 2.0
1 x DVI-D
1 x HDMI
1 x DisplayPort
2 x RJ45 LAN
1 x Audio I/O

Audio

ALC 888S HD Audio

Video

Integrated Intel Graphics from processor

LAN

Intel i219LM Gigabit Ethernet
Intel i225V 2.5Gb Ethernet

SATA / SAS

8 x SATA 6Gb/s

RAID

RAID 0, 1, 5, 10

USB Port (s)

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen 2 Type-C port on Front Panel
3 x USB 3.2 Gen 2 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen 1 Type-A ports on Front Panel
2 x USB 2.0 on Back Panel I/O

Ext. Drive Bays

2 x 5.25"

Int. Drive Bays

4 x 3.5"

Power

668W 80PLUS Platinum PS/2 Power Supply

Dimensions

7.6" x 21.1" x 16.7" (W x D x H)

Motherboard Manufacturer

Supermicro X13SAE

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
