Supermicro 510P-M C621A XEON LGA4189 1U w/ 500W PSU

Support: (408) 503-8000

Supermicro 510P-M C621A XEON LGA4189 1U w/ 500W PSU

SKU:	850-11709E

1x LGA4189 3rd Gen Xeon Scalable family
Max 2TB DR4 3200/2933/2666 ECC Reg (8 DIMMs)
4x 3.5" SATA bays - Hot Swap - RAID 0, 1, 10, 5
Integrated IPMI 2.0 with KVM and Dedicated LAN

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: Intel Xeon Silver 4310 12-Core 2.1GHz w/18MB LGA4189 CPU (Box)

: Intel Xeon Silver 4314 16-Core 2.4GHz w/24MB LGA4189 CPU (Box)

: Intel Xeon Silver 4316 20-Core 2.3GHz w/30MB LGA4189 CPU (Box)

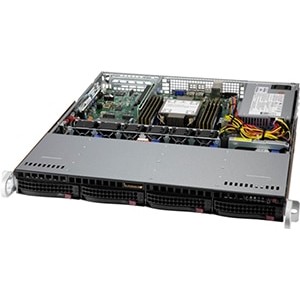

The Supermicro SYS-510P-M Mainstream SuperServer supports a single 3rd Generation Intel Xeon Scalable processor (up to 220W TDP) and up to 3TB (4x 256GB DRAM and 4x 512GB PMem) 8 DIMM slots. Additionally, the SYS-510P-M has 2 NVMe/SATA M.2 onboard and includes 4 hot-swap 3.5" SATA drive bays with the option to support SAS3 with an additional SAS controller.

This Mainstream server is capable of using 1 PCI-E 4.0 x16 full-height half-length expansion slot, plus supports up to 2 RJ45 1GbE ports and 1 RJ45 dedicated IPMI port for KVM over dedicated LAN. To power the entire system, there is a 500W platinum redundant power supply with over a 94% efficiency rating.

Description

Specifications

Server Case Form Factor

1U
17.2" x 1.7" x 19.98" (W x H x D)

Processor

3rd Gen Intel Xeon Scalable processors
Single (Not Included)

Chipset

Intel C621A

Bios

AMI UEFI

Type of Memory Supported

DDR4-3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM

Maximum Memory Supported

2TB

Number of Memory Slots

Slots

1 x PCIe 4.0 x16

Rear I/O Ports

2 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0 ports
1 x VGA
1 x RJ45 Dedicated IPMI LAN
2 x RJ45 LAN

Video

ASPEED AST2600 BMC

LAN

Intel i350 Gigabit LAN
Dedicated IPMI LAN

SATA / SAS

8 x SATA 6Gb/s via 2 mini-SAS HD
2 x SATA 6Gb/s

USB Port (s)

Rear: 2 x USB 3.2 G1, 2 x USB 2.0

Ext. Drive Bays

4 x 3.5" SATA drive bays

Power

1U 500W Multi-output, Platinum level with PMbus

Motherboard Manufacturer

Supermicro X12SPO-F

Manageability

IPMI 2.0, KVM with dedicated LAN

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
