Supermicro SSG-620P-ACR16L 620P-ACR16L C621A Xeon LGA4189 2U w/ 2x 1600W PSU

Supermicro 620P-ACR16L C621A Xeon LGA4189 2U w/ 2x 1600W PSU

Support: (408) 503-8000

Supermicro 620P-ACR16L C621A Xeon LGA4189 2U w/ 2x 1600W PSU

SKU:	850-11718H

2x LGA4189 3rd Gen Xeon Scalable family
Max 4TB DR4 3200/2933/2666 ECC Reg (16 DIMMs)
4x 3.5" NVMe, 12x 3.5" SAS/SATA - Hot Swap - RAID 0, 1, 10, 5
Integrated IPMI 2.0 with KVM and Dedicated LAN

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Intel Xeon Silver 4310 12-Core 2.1GHz w/18MB LGA4189 CPU (Box)

: Intel Xeon Silver 4314 16-Core 2.4GHz w/24MB LGA4189 CPU (Box)

: Intel Xeon Silver 4316 20-Core 2.3GHz w/30MB LGA4189 CPU (Box)

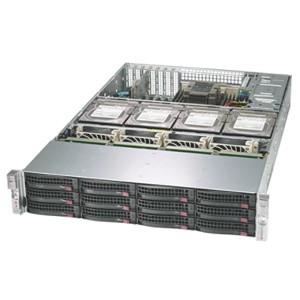

This Supermicro Storage server SSG-620P-ACR16L supports 4x 3.5" NVMe/SAS/SATA, 8x front, 4x internal 3.5" SAS/SATA hot-swap drive bay. It supports dual 3rd Gen Intel Xeon Scalable Processors, up to 4TB LRDIMM/RDIMM DDR4 ECC memory. It is optimized for high performance, high-end computing platforms and is ideal for big data, enterprise applications.

Description

Specifications

Server Case Form Factor

2U
17.2" x 3.5" x 25.5" (W x H x D)

Processor

3rd Gen Intel Xeon Scalable processors
Dual (Not Included)

Chipset

Intel C621A

Bios

AMI UEFI

Type of Memory Supported

DDR4-3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM

Maximum Memory Supported

4TB

Number of Memory Slots

Slots

4 x PCIe 4.0 x16
1 x PCIe 4.0 x8
1 x PCIe 4.0 x8 occupied by the Storage Controller

Rear I/O Ports

4 x USB 3.2 Gen1 Type-A ports
1 x VGA
1 x Serial port
1 x RJ45 Dedicated IPMI LAN
2 x RJ45 LAN

Video

ASPEED AST2600

LAN

Intel X550 10GBASE-T
Dedicated IPMI LAN

USB Port (s)

Rear: 4 x USB 3.2 G1 Type-A

Ext. Drive Bays

4 x 3.5" Hot-Swap NVMe/SAS3/SATA hybrid drive bay
8 x 3.5" Hot-Swap SAS/SATA drive bay

Int. Drive Bays

4 x Hot-Swap 3.5" SAS/SATA drive bay

Power

1600W Titanium Redundant Power Supply with PMbus

Motherboard Manufacturer

Supermicro X12DPi-NT6

Manageability

IPMI 2.0, KVM with dedicated LAN

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
