SKU: 800-11735H
  • Max 96GB / 6 x Dimm DDR3 1333/1066/800MHz Registered ECC
  • Max 24GB / 6 x Dimm DDR3 1333/1066/800MHz ECC/Non ECC Unbuffered
  • 8x SAS, 6X SATA / RAID 0,1,10, 5
  • Up to 5x USB 2.0 / Integrated Matrox G200eW Graphics - VGA
  • 2x PCIe X8, 1x PCIe X4, 1x PCIe X4, 2x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
  • Supports Dual 1366-pin LGA Sockets
  • Quad-Core Intel Xeon Processor 5500 sequence (Nehalem-EP processor)
Number of Processor (s)
Dual (Not Included)
Chipset
  • Intel 5500 (Tylersburg) chipset
  • ICH10R + IOH-24D
System Bios
32Mb SPI Flash EEPROM with AMI BIOS
Number of Memory Slots
6
Type of Memory Supported
  • 240-pin DDR3 1333 / 1066 / 800MHz ECC Registered memory
      • OR
  • 240-pin DDR3 1333 / 1066 / 800MHz ECC Unbuffered memory
Maximum RAM
  • ECC Registered: up to 48GB
      • OR
  • ECC Unbuffered: up to 24GB
Back Panel I/O
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Serial port
  • 2 x USB ports
  • 2 x RJ-45 LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
Number of PCI/PCI Express Slots
  • 1 x PCI-Express 2.0 X8 (using X16 slot)
  • 1 x PCI-Express 2.0 X8
  • 1 x PCI-Express 2.0 X4 (using X8 slot)
  • 1 x PCI-Express X4 (using X8 slot)
  • 2 x PCI
Number of ISA Slots (16 Bit)
No
On-Board EIDE/Floppy
No
Integrated IDE RAID
No
On-Board IDE RAID
No
Integrated SATA/SAS
  • 8 x SAS support by LSI SAS1068E
  • 6 x SATA 3Gb/s support by Intel ICH10R
Integrated SATA/SAS RAID
    SAS:
    • Supports RAID 0, 1, 10
    • RAID 5 Optional: AOC-IButton68
    SATA:
    • RAID 0, 1, 5, 10 support (Windows)
    • RAID 0, 1, 10 support (Linux)
Integrated Audio
No
Integrated Video
Integrated Matrox G200eW Graphics
Integrated LAN
  • 2 x Intel 82574L Gigabit Ethernet Controllers
  • 1 x Realtek RTL8201N PHY (dedicated IPMI)
Integrated SCSI
No
USB
    Up to 5 x USB ports:
    • 2 x USB ports on Back Panel I/O
    • 3 x USB ports via headers
IEEE 1394
No
Serial/Parallel Ports
  • 1 x Serial port
PS/2 Ports
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
Form Factor
ATX
Dimensions
12" x 10"
Additional information
To ensure system stability, a 550W (minimum) ATX power supply [Two 8-pin (+12V) and 24-pin are required]

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

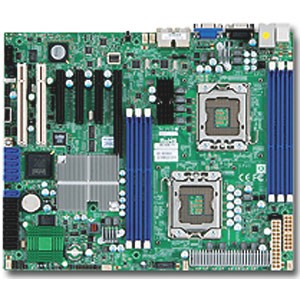

  • 1 x X8DTL-3F Motherboard
  • 8 x 57.5CM SATA Cable
  • I/O Shield
  • Manual
