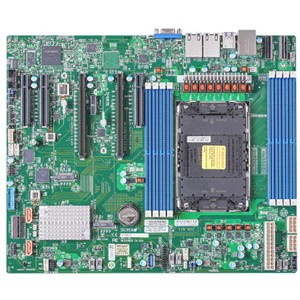

Supermicro MBD-X13SEI-TF-O X13SEI-TF C741 XEON LGA4677 ATX Server Board

Supermicro X13SEI-TF C741 XEON LGA4677 ATX Server Board

Support: (408) 503-8000

Supermicro X13SEI-TF C741 XEON LGA4677 ATX Server Board

SKU:	800-11776A

Integrated Graphics - VGA
Max 2TB / 8 DIMM DDR5-4800 ECC RDIMM
10x SATA 6Gb/s, 2x M.2
Up to 4x USB 3.2 G1, 2x USB 2.0
2x PCIe 5.0 x16, 3x PCIe 5.0 x8

Our Price:	Login to see price
Availability:	Usually ships within 1 week

Accessories

: Intel Xeon Bronze 3408U 8-Core 1.8GHz w/22.5MB LGA4677 CPU (Tray)

: Intel Xeon Gold 5415+ 8-Core 2.9GHz w/22.5MB LGA4677 CPU (Tray)

: Intel Xeon Silver 4410Y 12-Core 2GHz w/30MB LGA4677 CPU (Tray)

The Supermicro X13SEI-TF supports the 4th Generation Intel Xeon Scalable Processor Socket E with up to 60 cores and a Thermal Design Power (TDP) of 350W. Built with the Intel PCH C741 chipset, the X13SEI-TF supports 2048GB of ECC RDIMM/RDIMM 3DS DDR5 memory with speeds of up to 4800MT/s, M.2 slots, and a Trusted Platform Module (TPM) header. This motherboard is optimized for high-performance, and GPU applications that address the needs of next generation server applications.

Description

Specifications

CPU Support

4th Gen Intel Xeon Scalable processors
Socket E LGA 4677

Number of Processor (s)

Single (Not Included)

Chipset

Intel C741

System Bios

AMI UEFI

Number of Memory Slots

Type of Memory Supported

DDR5-4800 ECC RDIMM

Maximum RAM

2TB

Back Panel I/O

2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x VGA
2 x RJ45 LAN
1 x Dedicated IPMI LAN

Number of PCI/PCI Express Slots

2 x PCIe 5.0 x16
3 x PCIe 5.0 x8

Integrated SATA/SAS

8 x SATA 6Gb/s via SlimSAS
2 x SATA

# of M.2 Ports

2 x M.2 socket, with M key, type 2280/22110 support PCIe 5.0 x4 mode

Integrated Video

ASPEED AST2600

Integrated LAN

Dual 10GBase-T with Intel X550

IPMI

ASPEED AST2600 BMC

USB

2 x USB 3.2 Gen1 Type-A on Back Panel I/O
2 x USB 3.2 Gen1 Type-A via header
2 x USB 2.0 on Back Panel I/O

Serial/Parallel Ports

1 x Serial port via header

Form Factor

ATX

Dimensions

12.3" x 10.3"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
