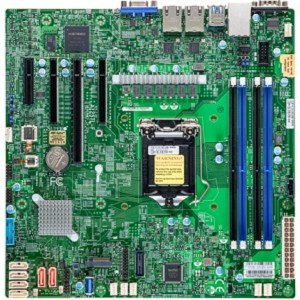

Supermicro X12STL-F C252 LGA1200 mATX motherboard

Support: (408) 503-8000

Supermicro X12STL-F C252 LGA1200 mATX motherboard

SKU:	800-11729F

Integrated Graphics - VGA
Max 128GB / 4 Dimm DDR4 3200 ECC UDIMM
6x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
Up to 5x USB 3.2 G1, 4x USB 2.0
1x PCIe x16, 2x PCIe x8, 1x PCIe x4

Our Price:	Login to see price
Availability:	Usually ships within 1 week

Accessories

: Intel Xeon E-2324G 4-Core 3.1GHz LGA1200 w/8MB cache CPU (BOX)

: Intel Xeon E-2334 4-Core 3.4GHz LGA1200 w/8MB cache CPU (BOX)

: Intel Xeon E-2336 6-Core 2.9GHz LGA1200 w/12MB cache CPU (BOX)

The Supermicro X12STL-F supports a single Intel Xeon E-2300 processor and up to 128GB ECC DDR4-3200 UDIMM memory in 4 DIMM slots. In addition, this motherboard has LAN that supports up to 2x RJ45 1GbE ports and 1x RJ45 dedicated IPMI for KVM over LAN.

Description

Specifications

CPU Support

Intel Xeon E-2300 Processor & 10th Gen Intel Pentium Processor

Number of Processor (s)

Single (Not Included)

Chipset

Intel C252

System Bios

UEFI

Number of Memory Slots

Type of Memory Supported

DDR4-3200/2933/2666MHz ECC UDIMM

Maximum RAM

128GB

Back Panel I/O

2 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0 port
1 x VGA port
2 x RJ45 LAN
1 x Dedicated BMC LAN
1 x Serial port

Number of PCI/PCI Express Slots

1 x PCIe 4.0 x16 (max x8)
1 x PCIe 4.0 x8
1 x PCIe 4.0 x8 (max x4)
1 x PCie 3.0 x4 (max x2)

Integrated SATA/SAS

6 x SATA 6Gb/s

Integrated SATA/SAS RAID

RAID 0 ,1, 5, 10

# of M.2 Ports

1 x M.2 socket, with M key, type 2280/22110 support PCIe 3.0 x4 mode

Integrated Video

ASPEED AST2600

Integrated LAN

2 x Intel I210 Gigabit LAN
1 x IPMI Dedicated LAN

IPMI

ASPEED AST2600

USB

2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
1 x USB 3.2 Gen1 internal
2 x USB 2.0 ports on Back Panel I/O
2 x USB 2.0 port via header

Serial/Parallel Ports

1 x Serial port on Back Panel I/O
1 x Serial port via header

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
