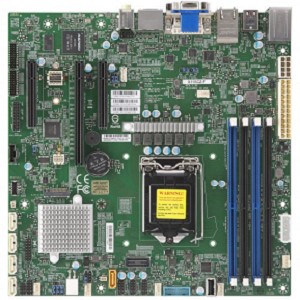

SKU: 800-11716E
  • Integrated Graphics - DVI / DP / VGA
  • Max 64GB / 4 Dimm DDR4 2666 ECC UDIMM
  • 5x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
  • Up to 6x USB 3.1 (2x USB-C), 2x USB 3.0, 7x USB 2.0
  • 1x PCIe X16, 2x PCIe X8
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
Intel Xeon-E, Core i3, Pentium and Celeron processors in an LGA1151 (H4) socket. 95W max TDP.
Number of Processor (s)
Single (Not Included)
Chipset
Intel C246
System Bios
AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
288-pin DDR4-2666MHz Unbuffered ECC/non-ECC UDIMM
Maximum RAM
64GB
Back Panel I/O
  • 3 x USB 3.1 Gen2 Type-A ports
  • 1 x USB 3.1 Gen2 Type-C port
  • 2 x DisplayPort
  • 1 x DVI-I
  • 1 x VGA
  • 2 x RJ 45 LAN
  • 1 x RJ45 Dedicated IPMI LAN
  • 1 x Audio I/O
Number of PCI/PCI Express Slots
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x8 (max. x4)
Integrated SATA/SAS
5 x SATA 6Gb/s
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
# of M.2 Ports
1 x M.2 2280/22110 support (SATA mode & X4 PCIe mode)
Integrated Audio
Realtek ALC888S
Integrated Video
Aspeed AST2500 BMC
Integrated LAN
  • Intel I210-AT Gigabit Ethernet
  • Intel I219LM Gigabit Ethernet
IPMI
IPMI (Intelligent Platform Management Interface) v 2.0 with KVM support
USB
    Up to 15 USB ports:
    • 3 x USB 3.1 Gen2 Type-A ports on Back Panel I/O
    • 1 x USB 3.1 Gen2 Type-C port on Back Panel I/O
    • 2 x USB 3.1 Gen2 Type-A port via header
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via header
    • 1 x USB 2.0 Type-A internal
    • 6 x USB 2.0 via headers
Serial/Parallel Ports
4 x Serial port via header
Form Factor
microATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • X11SCZ-F motherboard
  • Quick Reference Guide
  • I/O Shield
  • 5 x SATA cables
