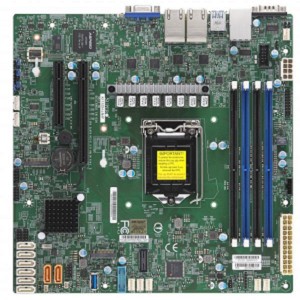

SKU: 800-11722F
  • Integrated Graphics - VGA
  • Max 64GB / 4 Dimm DDR4 2666 ECC UDIMM
  • 8x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • 2x USB 3.1, 3x USB 3.0, 6x USB 2.0
  • 1x PCIe X16, 1x PCIe X8
Our Price: Login to see price
Availability: Usually ships within 1 week


Specifications

CPU Support
Intel Xeon-E, Core i3, Pentium and Celeron processors in an LGA1151 (H4) socket. 95W max TDP.
Number of Processor (s)
Single (Not Included)
Chipset
Intel C246
System Bios
AMI BIOS
Number of Memory Slots
4
Type of Memory Supported
288-pin DDR4-2666MHz Unbuffered ECC UDIMM
Maximum RAM
64GB
Back Panel I/O
  • 2 x USB 3.1 Gen2 Type-A ports
  • 2 x USB 2.0 ports
  • 4 x RJ45 LAN
  • 1 x Dedicated IPMI LAN
  • 1 x VGA
  • 1 x Serial port
Number of PCI/PCI Express Slots
  • 1 x PCIe 3.0 x16 (max. x8)
  • 1 x PCIe 3.0 x8
Integrated SATA/SAS
8 x SATA 6Gb/s
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
# of M.2 Ports
2 x M.2 2280/22110 support (X4 PCIe mode)
Integrated Video
ASPEED AST2500
Integrated LAN
  • 4 x Intel I210 Gigabit Ethernet
  • 1 x Dedicated IPMI LAN
IPMI
IPMI (Intelligent Platform Management Interface) v 2.0 with KVM support
USB
    Up to 9 USB ports:
    • 2 x USB 3.1 Gen2 Type-A ports on Back Panel I/O
    • 1 x USB 3.0 (USB 3.1 Gen1) port internal
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 2 x USB 2.0 ports on Back Panel I/O
    • 4 x USB 2.0 ports via headers
Serial/Parallel Ports
  • 1 x Serial port on Back Panel I/O
  • 1 x Serial port via header
Form Factor
microATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • X11SCH-LN4F motherboard
  • Quick Reference Guide
  • I/O Shield
  • 6 x SATA cables

Compatible Accessories

Chassis

Supermicro SC813MFTQC-R407CB 1U Rackmount w/ 2x400W PSU (Black)
  • Motherboard: ATX, micro-ATX
  • 4 x 3.5" Hot-swap SAS/SATA HD bays
  • 4 x 40mm 22.5K RPM Fans
Manufacturer: Supermicro
Mfg P/N: CSE-813MFTQC-R407CB
Availability: Lead time: 1 week

Memory

Kingston 8GB DDR4-2666 ECC CL19 SRx8 288-pin UDIMM
  • PC4-21300
  • single-rank x8
  • Thermal Sensor on DIMM
  • ECC UDIMM
  • Micron E-Die
Manufacturer: Kingston
Mfg P/N: KSM26ES8/8MR
Availability: Usually ships with 1-2 business days

Cooling

Supermicro SNK-P0046P 1U Passive Heatsink for LGA1155/56 Socket
  • 1U Passive CPU Heat Sink
  • Intel Xeon Processor E3-1200 Series
  • Socket LGA 1150/1155
Manufacturer: Supermicro
Mfg P/N: SNK-P0046P
Availability: Lead time: 1 week
