SKU: A321047
  • Power over Cable allows single power source to operate Transmitter & Receiver
  • Supports CAT5e or CAT6
  • HD Resolutions up to 1080p
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

General Information
Manufacturer
com
Manufacturer Part Number
ST121SHD50
Manufacturer Website Address
Product Model
ST121SHD50
Product Type
Video Console/Extender
Technical Information
Connectivity Technology
Wired
Number of Input Devices Supported
1
Number of Output Devices Supported
1
Daisy Chain
No
Maximum Operating Distance
164.04 ft
Video
Graphics Modes
Full HD
Maximum Video Resolution
1920 x 1080
Interfaces/Ports
Network (RJ-45)
Yes
HDMI In
Yes
HDMI Out
Yes
Number of Network (RJ-45) Ports
4
Number of HDMI Inputs
1
Number of HDMI Outputs
1
Media & Performance
Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 6
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
  • Physical Characteristics
    Color
    Black
    Material
    Aluminum
    Height
    0.8"
    Length
    3.1"
    Form Factor
    Rack-mountable
    Weight (Approximate)
    5.50 oz
    Miscellaneous
    Certifications & Standards
    • CE
    • FCC
    Green Compliant
    Yes
    Green Compliance Certificate/Authority
    RoHS

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 2 years
    • Warranty Provider: StarTech
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact StarTech at (519) 455-4931
    • Technical Support: StarTech (519) 455-4931

    Package Contents

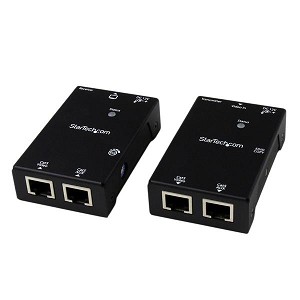

    • 1 x HDMI over CAT5e/6 UTP Transmitter
    • 1 x HDMI over CAT5e/6 UTP Receiver
    • 1 x Universal Power Adapter (EU, UK, NA)
    • 2 x Mounting Brackets
    • 2 x Foot Pad Set
    • 1 x User Manual
