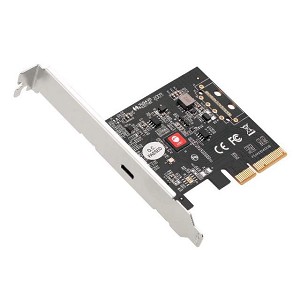

SIIG JU-P20D11-S1 USB 3.2 Gen 2x2 Type-C PCIe 3.0 x4 Adapter

SKU:

459-17034

Our Price:	Login to see price
Availability:	Temporarily out of stock

What's New

Compatible with USB 3.2 Gen 2x2 specification - supports multi-lane operation allowing for 2 lanes of 10Gbps to achieve 20Gbps data rate. Note: Both hosts and devices must support the new USB 3.2 standard to achieve the 20Gbps transfer speed
Compliant with Intel’s eXtensible Host Controller Interface (xHCI) specification v1.1
Compliant with UASP Revision 1.0
Supports plug-n-play, hot-swapping, and backward compatible with USB 3.1 /3.0 / 2.0 / 1.1 devices
USB-C provides up to 3A power output to support the power required of connected devices
Supports the following data transfer rates - 1.5Mbps / 12Mbps / 480Mbps / 5Gbps / 10Gbps / 20Gbps
Hot-swapping feature allows you to connect / disconnect devices without powering down the system
Dual-profile design allows installing into either full height or low-profile system chassis with the included brackets
USB-C port features over-current protection to protect your device against power surges

Compatible with USB 3.2 Gen 2x2 specification - supports multi-lane operation allowing for 2 lanes of 10Gbps to achieve 20Gbps data rate. Note: Both hosts and devices must support the new USB 3.2 standard to achieve the 20Gbps transfer speed
Compliant with Intel’s eXtensible Host Controller Interface (xHCI) specification v1.1
Compliant with UASP Revision 1.0
Supports plug-n-play, hot-swapping, and backward compatible with USB 3.1 /3.0 / 2.0 / 1.1 devices
USB-C provides up to 3A power output to support the power required of connected devices
Supports the following data transfer rates - 1.5Mbps / 12Mbps / 480Mbps / 5Gbps / 10Gbps / 20Gbps
Hot-swapping feature allows you to connect / disconnect devices without powering down the system
Dual-profile design allows installing into either full height or low-profile system chassis with the included brackets
USB-C port features over-current protection to protect your device against power surges

Warranty Length: 2 years
Warranty Provider: SIIG
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact SIIG at
Technical Support: SIIG
