SKU: A322069
  • 3-in-1 Converter
  • Max Resolution: 4096 x 2160
  • Works with one connected output at a time
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Technical Information
Cable Type
Mini DisplayPort/VGA/DVI/HDMI
Connector on First End
1 x 20-pin Mini DisplayPort Male DisplayPort 1.2 Digital Audio/Video
Connector on Second End
  • 1 x 15-pin D-sub Female VGA
  • 1 x 19-pin HDMI Female Digital Audio/Video
  • 1 x 25-pin DVI-D Female Digital Video
    • Device Supported
  • Computer
  • Notebook
  • Tablet
    • Data Transfer Rate
    2.70 GBps
    Supported Resolution
    4096 x 2160
    Physical Characteristics
    Color
    White
    Material
    Plastic
    Weight (Approximate)
    4.32 oz
    Miscellaneous
    Additional information

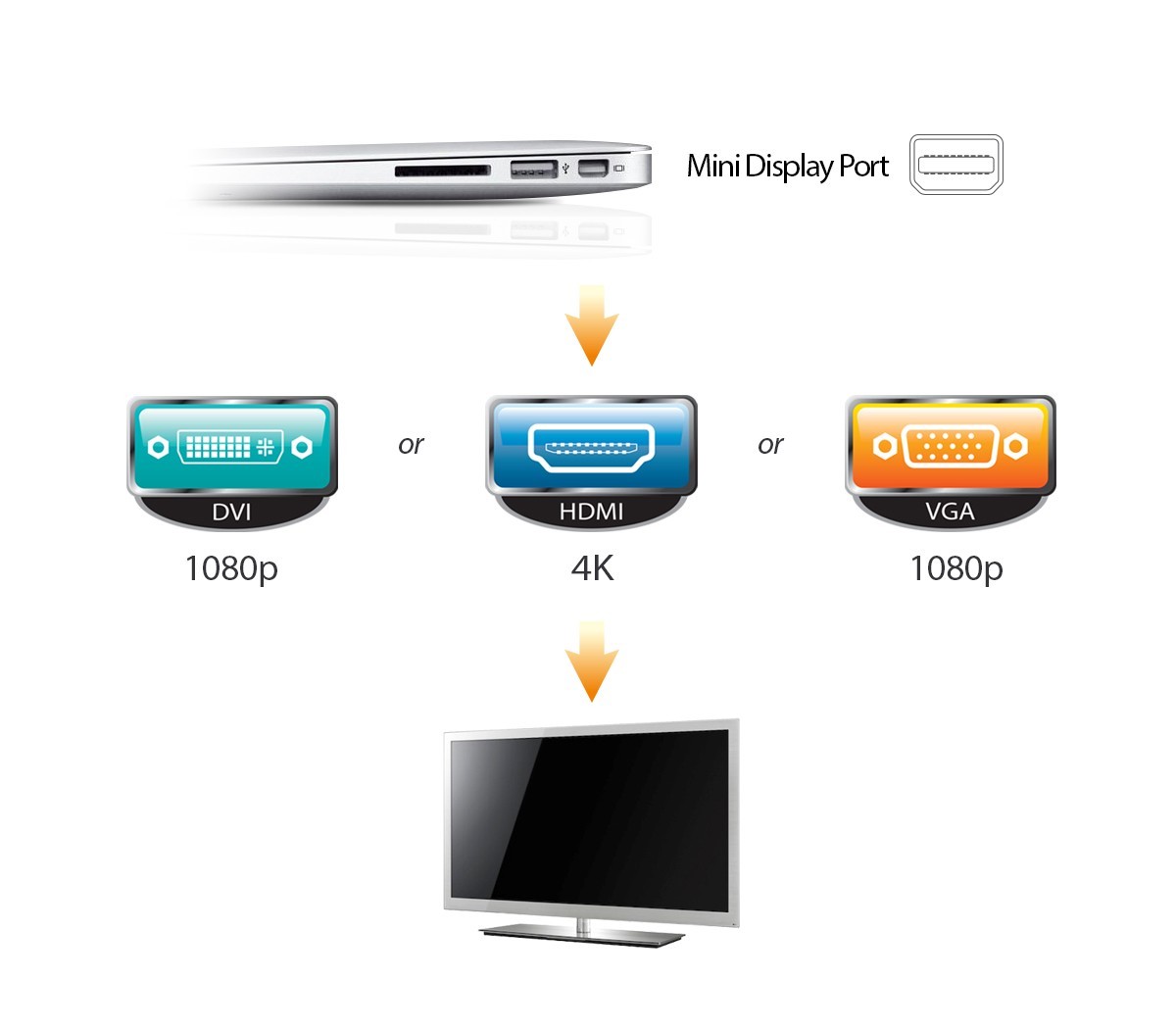

    • Simply connects the Mini DisplayPort output of tablet or laptop computer to either a HDMI, DVI or VGA equipped display device
    • Works with one connected output at a time
    • 3-in-1 converter solution expands the compatibility between Mini DisplayPort and most mainstream displays without requiring an additional adapter
    • Supports DisplayPort 1.2 protocols includes 48-bit color depth, high bite rate (up to 21.6 Gbps) and maximum video resolution up to 4Kx2K (30Hz) on HDMI output
    • Compact and lightweight design makes it a perfect solution to use at home, in the office, or on the road
    • No driver installation required
    • Supports audio out through HDMI connection only
    • Bus-powered, no external power source required
    • Humidity: < 85% non-condensing
    • Operating temperature: 32 to 113 degrees F
    • Storage temperature: 14 to 158 degrees F
    • Dimensions: 3.35"(W) x 0.47"(H) x 2.36"(D
    • Form Factor: External
    Certifications & Standards
    • FCC
    • CE
    Green Compliant
    Yes
    Green Compliance Certificate/Authority
    RoHS
    Country of Origin
    China
    Warranty
    Limited Warranty
    2 Year

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 2 years
    • Warranty Provider: SIIG
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact SIIG at
    • Technical Support: SIIG

    Package Contents

    • Mini DisplayPort 1.2 to HDMI/DVI/VGA Conversion Adapter
    • User Reference Guide
