SKU: A321801
  • Supports 8-bit per color RGB color format
  • Supports full DisplayPort link training
  • Supports EDID and MCCS pass-through
  • Max Resolution: 1920 x 1200
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

General Information
Brand Name
SIIG
Manufacturer Part Number
CB-DP0R11-S1
Manufacturer
SIIG, Inc
Packaged Quantity
1
Product Name

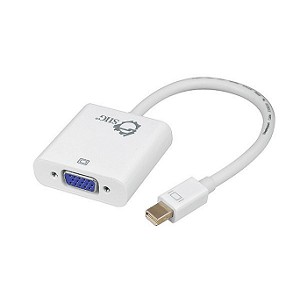

Mini DisplayPort to VGA Adapter Converter
Product Type
Video Cable
Miscellaneous
Additional information
  • Compatible with Intel® Thunderboltâ„¢
  • Connect the latest mini DisplayPort equipped computer systems to VGA displays
  • Compliant with DisplayPort standards, supporting 1.62Gbps and 2.7Gbps
  • Supports 1080p and PC graphics resolution up to 1920x1200
  • Supports 8-bit per color RGB color format
  • Supports full DisplayPort link training
  • Supports EDID and MCCS pass-through
  • Automatic monitor plug and unplug detect for VGA output
  • Compact design with 8KV ESD protection
    • Certifications & Standards
    • CE
    • FCC
    Country of Origin
    China
    Device Supported
    Notebook
    Green Compliance Certificate/Authority
    RoHS
    Green Compliant
    Yes
    Limited Warranty
    3 Year
    Physical Characteristics
    Color
    White
    Material
    Plastic
    Weight (Approximate)
    1.28 oz
    Product Information
    Device Supported
    Notebook
    Packaged Quantity
    1
    Technical Information
    Cable Type
    Mini DisplayPort/VGA
    Conductor
    Copper
    Connector Plating
    Gold Plated
    Connector on First End
    1 x 20-pin Mini DisplayPort Male DisplayPort 1.1a Digital Audio/Video
    Connector on Second End
    1 x 15-pin HD-15 Female VGA
    Device Supported
    Notebook
    Warranty
    Limited Warranty
    3 Year

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 3 years
    • Warranty Provider: SIIG
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact SIIG at
    • Technical Support: SIIG

    Package Contents

    • SIIG Mini DisplayPort to VGA Adapter Converter
