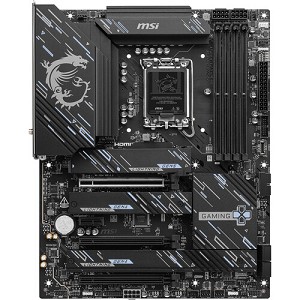

MSI Z890 GAMING PLUS WIFI Z890 LGA1851 ATX Motherboard

Support: (626) 913-0828

MSI Z890 GAMING PLUS WIFI Z890 LGA1851 ATX Motherboard

SKU:	800-14093E

Integrated Intel Graphics - HDMI, DisplayPort, Thunderbolt 4 USB-C
Max 256GB / 4x DDR5 DIMM / Up to 9200+ (O.C.)
4x SATA 6GB/s, 4x M.2 / RAID 0, 1, 10, 5
Up to 1x Thunderbolt USB-C, 2x USB 3.2 G2 (2x USB-C), 4x USB 3.2 G1, 8x USB 2.0
1x PCIe 5.0 x16, 2x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x16 (x1)

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: Intel Core Ultra 5 245K 14-Core LGA1851 w/24MB cache CPU (BOX)

: Intel Core Ultra 7 265K 20-Core LGA1851 w/30MB cache CPU (BOX)

: Intel Core Ultra 9 285K 24-Core LGA1851 w/36MB cache CPU (BOX)

Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.

Description

Specifications

CPU Support

LGA1851 socket for Intel Core Ultra Processors (Series 2)

Number of Processor (s)

Single (Not Included)

Chipset

Intel Z890 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-9200(O.C.)+ / 9066(O.C.) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory

Maximum RAM

256GB

Back Panel I/O

1 x PS2 Keyboard / Mouse
1 x Thunderbolt 4 USB Type-C port
1 x USB 3.2 Gen2 Type-C port
1 x USB 3.2 Gen2 Type-A port
2 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x RJ45 LAN
1 x Audio I/O
2 x Antenna ports

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
2 x PCIe 4.0 x16 (x4 electrical)
1 x PCIe 4.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 with M key, type 2260/2280 supports PCIe 5.0 x4 mode
1 x M.2 with M key, type 2260/2280/22110 supports PCIe 4.0 x4 mode
1 x M.2 with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
1 x M.2 with M key, type 2242/2260/2280 supports PCIe 4.0 x4 & SATA mode

Integrated SATA/SAS RAID

RAID 0, 1, 10, 5

Integrated Audio

Realtek ALC897 7.1 High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Intel Killer E5000 5Gb Ethernet

Integrated Wifi

Wi-Fi 7 (802.11be) & Bluetooth v5.4

USB

1 x Thunderbolt 4 USB Type-C port on Back Panel I/O
1 x USB 3.2 Gen 2x2 Type-C port via header
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 ports via headers
4 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

PS/2 Ports

1 x PS2 Keyboard / Mouse on Back Panel I/O

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: MSI
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact MSI at (626) 913-0828 Or visit MSI customer service online.
Technical Support: MSI (626) 913-0828 or visit MSI technical support online.
