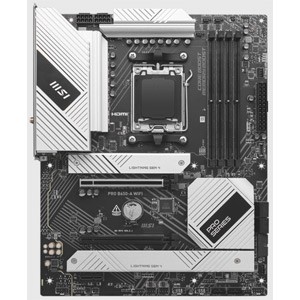

MSI PRO B650-A WIFI Socket AM5 ATX Motherboard

SKU:	800-14085E

Integrated Radeon Graphics - HDMI / DisplayPort
Max 256GB / 4x DDR5 DIMM / Up to 7600+(OC)
6x SATA 6GB/s, 3x M.2 / RAID 0, 1, 10
5x USB 3.2 G2 (2x USB-C), 6x USB 3.2 G1, 6x USB 2.0
2x PCIe 4.0 x16, 1x PCIe 3.0 x1

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: AMD Ryzen 5 9600X 6-Core 3.9GHz /6MB cache AM5 CPU (Retail)

: AMD Ryzen 7 9700X 8-Core 3.8GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 9 9900X 12-Core 4.4GHz /12MB cache AM5 CPU (Retail)

The PRO B650-A WIFI is a business-oriented ATX motherboard featuring the latest AMD B650 chipset that supports ample RAM capacity. The PRO B650-A WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 processors. The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Description

Specifications

CPU Support

AMD Ryzen 9000/ 8000/ 7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD B650

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5 7600+(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800

Maximum RAM

256GB

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
3 x USB 3.2 Gen2 Type-A ports
4 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x RJ45 LAN
1 x Audio I/O
2 x Antenna connectors

Number of PCI/PCI-Express Slots

2 x PCIe 4.0 x16
1 x PCIe 3.0 x1

Integrated SATA/SAS

6 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 22110/2280 supports PCIe 4.0 x4 mode
2 x M.2 socket, with M key, type 2280/2260 support PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek RTL8125BG 2.5 Gb Ethernet

Integrated Wifi

AMD Wi-Fi 6E & Bluetooth 5.2

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port via header
3 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
2 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
