MSI PRO A620M-E AMD A620 AM5 mATX Motherboard

Support: (626) 913-0828

MSI PRO A620M-E AMD A620 AM5 mATX Motherboard

SKU:	800-14081E

Integrated Radeon Graphics - HDMI / VGA
Max 128GB / 2x DDR5 DIMM / Up to 6800+ (O.C.)
4x SATA 6GB/s, 1x M.2 / RAID 0, 1, 10
6x USB 3.2 G1, 6x USB 2.0
1x PCIe 4.0 x16, 1x PCIe 3.0 x1

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: AMD RYZEN 5 7600 6-Core 3.8GHz /6MB cache AM5 CPU (Retail)

: AMD RYZEN 7 7700 8-Core 3.8GHz /8MB cache AM5 CPU (Retail)

: Crucial 16GB DDR5-4800 PC5-38400 CL40 288-pin UDIMM

MSI PRO A620M-E featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. The extensive features let you fine-tune your system to deliver reliable maximum performance.

Description

Specifications

CPU Support

AMD Ryzen 9000/ 8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD A620

System Bios

UEFI AMI BIOS

Number of Memory Slots

Type of Memory Supported

DDR5-6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC & Non-ECC, Un-buffered Memory

Maximum RAM

128GB

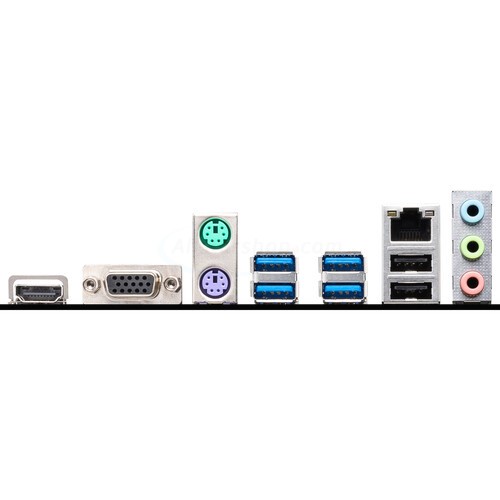

Back Panel I/O

1 x PS2 Keyboard
1 x PS2 Mouse
4 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0
1 x HDMI
1 x VGA
1 x RJ45 LAN
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
1 x PCI 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2260/2280 supports PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 8111H Gigabit Ethernet

USB

4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
2 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

PS/2 Ports

1 x PS2 Keyboard
1 x PS2 Mouse

Form Factor

Micro ATX

Dimensions

9.6" x 8.3"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: MSI
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact MSI at (626) 913-0828 Or visit MSI customer service online.
Technical Support: MSI (626) 913-0828 or visit MSI technical support online.
