SKU: 800-14131A
  • Integrated Intel Graphics - DVI-D / HDMI / VGA
  • Max 16GB / 4 x Dimm DDR3 2133(OC)/1333/1066
  • 6 x SATA / 1 x IDE / 0 x FDD
  • Up to 12 x USB 2.0
  • 1 x PCI-E 2.0 X16, 2 x PCI-E X1, 1 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1156 socket:
    • Intel Core i7
    • Intel Core i5
    • Intel Core i3
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel H55
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 2133(OC)/1333/1066 Memory
Maximum RAM
16GB

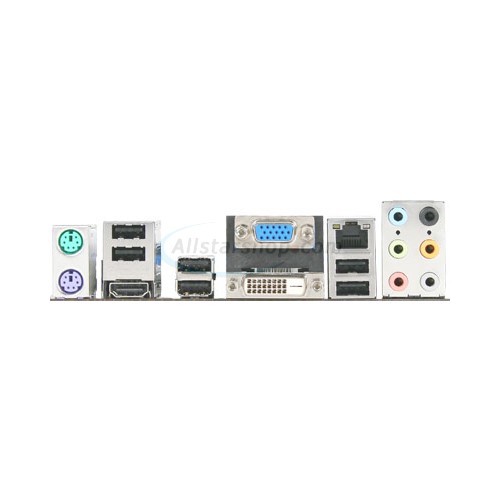

Back Panel I/O
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 6 x USB 2.0 ports
  • 1 x 15-pin VGA
  • 1 x HDMI
  • 1 x DVI-D
  • 1 x RJ45 LAN port
  • 1 x Audio I/O
    Number of PCI/PCI-Express Slots
    • 1 x PCI-Express 2.0 X16
    • 2 x PCI-Express X1
    • 1 x PCI
    Number of ISA Slots (16 Bit)
    No
    On-Board EIDE/Floppy
    1 x UltraDMA 133/100 for up to 2 PATA devices
    On-Board IDE RAID
    No
    Integrated SATA/SAS
    6 x SATA II 3.0Gb/s
    Integrated SATA/SAS RAID
    No
    Integrated Audio
    Realtek ALC889 8-Channel High Definition Audio CODEC
    Integrated Video
    • Onboard motherboard display functionality requires a processor with Intel Graphics Technology
    Integrated LAN
    Realtek 8111DL Gigabit LAN controller
    Integrated SCSI
    No
    USB
      Up to 12 x USB ports:
      • 6 x USB ports on Back Panel I/O
      • 6 x USB ports via headers
    IEEE 1394
    No
    Serial/Parallel Ports
    No
    PS/2 Ports
    • 1 x PS/2 Keyboard
    • 1 x PS/2 Mouse
    Form Factor
    micro ATX
    Dimensions
    9.6" x 9.6"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
