SKU: 800-14082E
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 192GB / 4x DDR5 DIMM / Up to 6800(O.C.)
  • 4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • 3x USB 3.2 G2 (1x USB-C), 3x USB 3.2 G1 (1x USB-C), 8x USB 2.0
  • 2x PCIe 4.0 x16, 3x PCIe 3.0 x16
Our Price: Login to see price
Availability: Usually ships within 1 week


Specifications

CPU Support
LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B760 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-6800(O.C.) / 6600(O.C.) / 6400(O.C.) /6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory
Maximum RAM
192GB
Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse
  • 1 x USB 3.2 Gen2 Type-C port
  • 2 x USB 3.2 Gen2 Type-A ports
  • 4 x USB 2.0
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 2 x Wi-Fi connectors
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (max x4)
  • 3 x PCIe 3.0 x16 (max x1)
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC897 7.1 CH HD Audio Codec
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Realtek RTL8125BG 2.5Gb Ethernet
Integrated Wifi
Intel Wi-Fi 6E & Bluetooth v5.3
USB
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-C port via header
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 4 x USB 2.0 on Back Panel I/O
  • 4 x USB 2.0 via headers
PS/2 Ports
1 x PS/2 Keyboard/Mouse
Form Factor
ATX
Dimensions
12" x 9.6

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

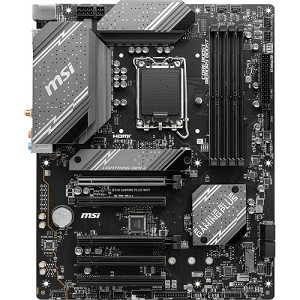

  • MSI B760 GAMING PLUS WIFI motherboard
  • Quick Installation Guide
  • I/O shield
  • SATA cables
  • 2x M.2 Screw / Standoff
  • Wi-Fi Antenna
