MSI B550-A PRO AMD B550 Socket AM4 ATX Motherboard - (Discontinued)

Support: (626) 913-0828

MSI B550-A PRO AMD B550 Socket AM4 ATX Motherboard - (Discontinued)

SKU:	800-14036E

Max 128GB / 4x DDR4 DIMM / Up to 4400+(O.C.)
6x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
Up to 2x USB 3.2 G2 (1x USB-C), 5x USB 3.2 G1 (1x USB-C), 8x USB 2.0
2x PCIe x16, 2x PCIe x1

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Crucial 16GB DDR4-3200 PC4-25600 CL22 288-pin DIMM

: Crucial 8GB DDR4-3200 PC4-25600 CL22 288-pin DIMM

: Kingston 16GB DDR4-3200 CL22 288-pin DIMM

MSI PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, B550-A PRO motherboard provides not only optimized professional workflows but also less troubleshooting and longevity.

Description

Specifications

CPU Support

AMD AM4 3rd Gen Ryzen processor
Not Compatible with AMD Ryzen 5 3400 G and Ryzen 3200 G

Number of Processor (s)

Single (Not Included)

Chipset

AMD B550

System Bios

AMI UEFI BIOS

Video card slot

PCIe 4.0/3.0 x16

Number of Memory Slots

Type of Memory Supported

DDR4 4400+(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3333(O.C.) / 3200 / 3000/ 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory

Maximum RAM

128GB

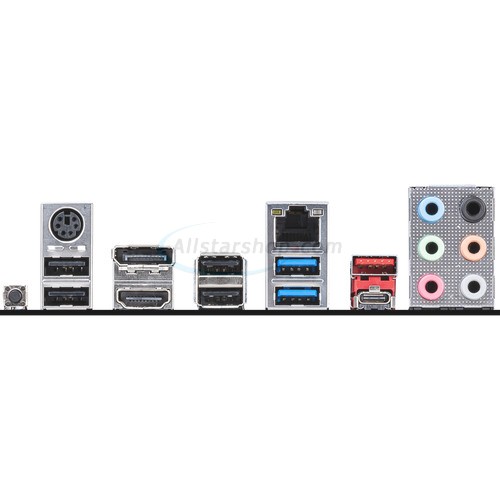

Back Panel I/O

1 x PS/2 keyboard/ mouse
1 x USB 3.2 Gen2 Type-A port
1 x USB 3.2 Gen2 Type-C port
2 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0 Type-A ports
1 x DisplayPort
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (Max x4)
2 x PCIe 3.0 x1

Integrated SATA/SAS

6 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket 3, with M Key, Type 2242/2260/2280/22110 supports SATA & PCIE 4.0 x4 storage devices
1 x M.2 socket 3, with M Key, Type 2242/2260/2280 supports PCIE 3.0 x4 storage devices

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek ALC892 7.1 CH HD Audio Codec

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 8111H Gigabit LAN

USB

1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
1 x USB 3.2 Gen1 Type-C ports via header
4 x USB 2.0 Type-A ports on Back Panel I/O
4 x USB 2.0 Type-A ports via headers

PS/2 Ports

1 x PS/2 keyboard/ mouse

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: MSI
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact MSI at (626) 913-0828 Or visit MSI customer service online.
Technical Support: MSI (626) 913-0828 or visit MSI technical support online.
