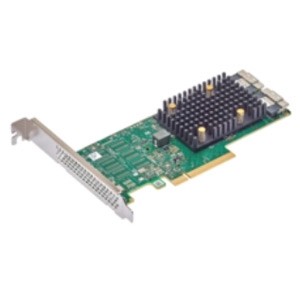

Broadcom 9500-16i 16-Port 12Gb/s SAS/NVMe PCIe 4.0 x8 Host Bus Adapter

Broadcom 9500-16i 16-Port 12Gb/s SAS/NVMe PCIe 4.0 x8 Host Bus Adapter

Broadcom 9500-16i 16-Port 12Gb/s SAS/NVMe PCIe 4.0 x8 Host Bus Adapter

SKU:	250-15428A

Broadcom SAS3816
2 x8 SFF-8654 (SlimLine)
Tri-mode: NVMe / SAS / SATA
Connects up to 1024 SAS/SATA devices or 32 NVMe devices

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: SlimSAS 8i (SFF-8654) to 2x Mini-SAS HD 4i (SFF-8643) Cable - 1m

: SlimSAS 8i (SFF-8654) to 2x SFF-8639 U.2 Cable with SATA power

: SlimSAS 8i (SFF-8654) to SlimSAS 8i (SFF-8654) Cable - 0.5m

The high-port 9500-16i Tri-Mode, PCIe Gen 4.0 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility. With increased bandwidth and IOPS performance compared to previous generations, the 9500-16i adapter delivers the performance and scalability needed by critical applications.

Description

The high-port 9500-16i Tri-Mode, PCIe Gen 4.0 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility. With increased bandwidth and IOPS performance compared to previous generations, the 9500-16i adapter delivers the performance and scalability needed by critical applications.

Specifications

Host Interface

PCIe Gen 4.0 x8

Data Transfer Rate

12Gb/s SAS
6Gb/s SATA
Gen 4.0 PCIe (NVMe)

Drive Supported

1024 SAS/SATA devices
32 NVMe devices

Processor

Broadcom SAS3816

Ports

2 x8 SFF-8654 (SlimLine)

Dimensions

6.127" x 2.712"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: LSI
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact LSI at 866-574-5741
Technical Support: LSI 866-574-5741

Package Contents

Broadcom 9500-16i HBA
Low Profile Bracket

Compatible Accessories

SlimSAS 8i (SFF-8654) to 2x Mini-SAS HD 4i (SFF-8643) Cable - 1m

Connector 1: SlimSAS 8i (SFF-8654)
Connector 2: 2x Mini-SAS HD 4i (SFF-8643) - SAS/SATA backplane
32AWG

Manufacturer: A-link

Mfg P/N: X7035X2-1M

Availability: Lead time: 1 week

SlimSAS 8i (SFF-8654) to 2x SFF-8639 U.2 Cable with SATA power connector - 0.6m

Host: SlimSAS 8i (SFF-8654) 74-pin
Target: 2x SFF-8639 U.2 with 15-pin SATA power connector

Manufacturer: A-link

Mfg P/N: 910-00233

Availability: Lead time: 2 weeks

SlimSAS 8i (SFF-8654) to SlimSAS 8i (SFF-8654) Cable - 0.5m

Host: SlimSAS 8i (SFF-8654) 74-pin
Target: SlimSAS 8i (SFF-8654) 74-pin
30 AWG

Manufacturer: A-link

Mfg P/N: 910-00232

Availability: Lead time: 1 week

SlimSAS 8i (SFF-8654) to SlimSAS 8i (SFF-8654) Cable - 1m

Host: SlimSAS 8i (SFF-8654) 74-pin
Target: SlimSAS 8i (SFF-8654) 74-pin
30 AWG

Manufacturer: A-link

Mfg P/N: 910-00232B

Availability: Lead time: 1 week

Broadcom x8 SFF-8654 SlimSAS to 2x SFF-8639 U.2 with Power Cable - 1M

Host/Controller: SFF-8654 (SlimSAS)
Target: 2x U.2 SFF-8639 with 4-pin Molex power

Manufacturer: LSI

Mfg P/N: 05-60005-00

Availability: Temporarily out of stock

Broadcom x8 SFF-8654 SlimSAS to 8x SFF-8639 U.3 with Power cable - 1M

Host/Controller: SFF-8654 (SlimSAS)
Target: 8x U.3 SFF-8639 with 4-pin Molex Power

Manufacturer: LSI

Mfg P/N: 05-60006-00

Availability: Usually ships with 1-2 business days

Broadcom x8 SFF-8654 SlimSAS to x8 SFF-8654 SlimSAS cable - 1M

Host/Controller: SFF-8654 (SlimSAS)
Target: SFF-8654 (SlimSAS)

Manufacturer: LSI

Mfg P/N: 05-60007-00

Availability: Usually ships with 1-2 business days

Broadcom x8 SFF-8654 to 2 x4 SFF-8654 SlimSAS cable - 1M

Host/Controller: SFF-8654 (SlimSAS)
Target: 2 x4 SFF-8654 (SlimSAS)

Manufacturer: LSI

Mfg P/N: 05-60004-00

Availability: Temporarily out of stock
