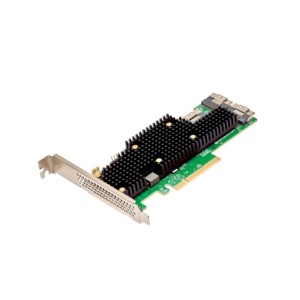

LSI 05-50111-01 Broadcom 9600-24i 24-Port 24Gb/s SAS/NVMe PCIe 4.0 x8 Host Bus Adapter

Broadcom 9600-24i 24-Port 24Gb/s SAS/NVMe PCIe 4.0 x8 Host Bus Adapter

SKU:	250-15433A

Broadcom SAS4024
3 x8 SFF-8654 (SlimLine)
Tri-mode: NVMe / SAS / SATA
Connects up to 240 SAS/SATA devices or 32 NVMe devices

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: SlimSAS 8i (SFF-8654) to 2x Mini-SAS HD 4i (SFF-8643) Cable - 1m

: SlimSAS 8i (SFF-8654) to 2x SFF-8639 U.2 Cable with SATA power

: SlimSAS 8i (SFF-8654) to SlimSAS 8i (SFF-8654) Cable - 0.5m

The high-port 9600-24i Tri-Mode, PCIe Gen 4.0 eHBA (enhanced HBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility. With increased bandwidth and IOPS performance compared to previous generations, the 9600-24i adapter delivers the performance and scalability needed by critical applications.

Low profile, half-length x8 PCIe Gen 4.0 adapter
Connect up to 240 SAS/SATA devices or 32 NVMe devices
Hardware Secure Boot and SPDM Attestation support
SMART monitoring
Drive temperature monitoring
SafeStore key management for attached SEDs
Universal Bay Management (UBM) Ready

Description

Low profile, half-length x8 PCIe Gen 4.0 adapter
Connect up to 240 SAS/SATA devices or 32 NVMe devices
Hardware Secure Boot and SPDM Attestation support
SMART monitoring
Drive temperature monitoring
SafeStore key management for attached SEDs
Universal Bay Management (UBM) Ready

Specifications

Host Interface

PCIe Gen 4.0 x8

Data Transfer Rate

22.5, 12, 6Gb/s SAS
6Gb/s SATA
Gen 4.0 PCIe (NVMe)

Drive Supported

240 SAS/SATA devices
32 NVMe devices

Processor

Broadcom SAS4024

Ports

3 x8 SFF-8654 (SlimLine)

Dimensions

6.127" x 2.712"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: LSI
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact LSI at 866-574-5741
Technical Support: LSI 866-574-5741
