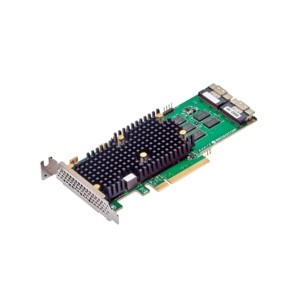

LSI 05-50107-00 Broadcom MegaRAID 9660-16i 16-Port 24Gb/s SAS/NVMe PCIe 4.0 x8 RAID Controller

Broadcom MegaRAID 9660-16i 16-Port 24Gb/s SAS/NVMe PCIe 4.0 x8 RAID Controller

SKU:	250-15435A

Broadcom SAS4116
2x x8 SFF-8654 (SlimSAS)
Tri-mode: NVMe / SAS / SATA
Connects up to 240 SAS/SATA devices or 32 NVMe devices

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

What's New

: StarTech 8K 60Hz HBR3 HDR DisplayPort 1.4 Cable - 10ft

: StarTech 8K 60Hz HBR3 HDR DisplayPort 1.4 Cable - 3.3ft

: C2G USB-C TO HDMI Video Adapter - 8K 60HZ

The MegaRAID 9660-16i adapter, based on the SAS4116 RAID-on-Chip (RoC), is the highest performing x8 PCIe Gen 4.0 storage adapter available to meet the ever-increasing demands of the data center. The low power MegaRAID 9660-16i allows users to seamlessly transition their existing storage infrastructure to get breakthrough SSD performance with minimal airflow and cooling requirements.

Low profile, half-length x8 PCIe Gen 4.0 adapter
Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
SFF-8654 (SlimSAS) x8 connectors
Form-factor friendly cable exit
Hardware Secure Boot and SPDM Attestation support
Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 and JBOD
SFF-TA-1005 Universa Bay Management (UBM) Ready
Add more protection and peace of mind with CacheVault flash cache protection

Description

Low profile, half-length x8 PCIe Gen 4.0 adapter
Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
SFF-8654 (SlimSAS) x8 connectors
Form-factor friendly cable exit
Hardware Secure Boot and SPDM Attestation support
Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 and JBOD
SFF-TA-1005 Universa Bay Management (UBM) Ready
Add more protection and peace of mind with CacheVault flash cache protection

Specifications

Host Interface

PCIe Gen 4.0 x8

Data Transfer Rate

22.5, 12, 6Gb/s SAS
6Gb/s SATA
Gen 4.0 PCIe (NVMe)

RAID Levels

0, 1, 5, 6, 10, 50, 60

Drive Supported

240 SAS/SATA devices
32 NVMe devices

Processor

Broadcom SAS4116

Ports

2 x8 SFF-8654 (SlimLine)

Dimensions

6.127” x 2.712”

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: LSI
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact LSI at 866-574-5741
Technical Support: LSI 866-574-5741

Package Contents

MegaRAID 9660-16i
LP bracket
