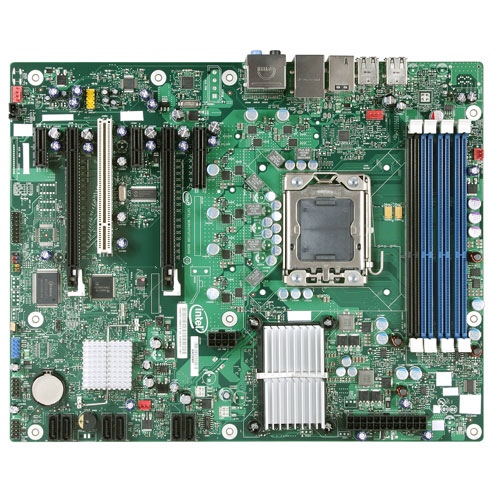

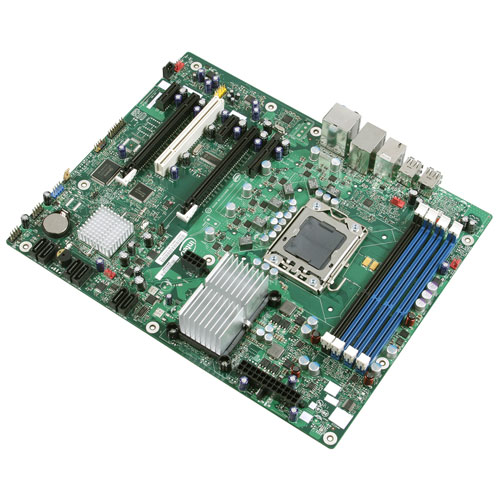

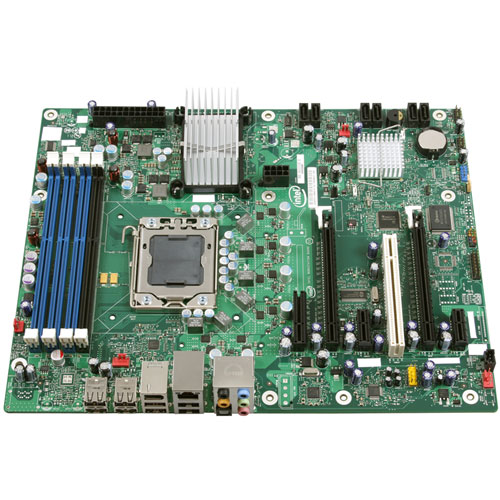

SKU: 800-28101A
  • Max 16GB / 4 x Dimm DDR3 1333/1066/800
  • 6 x SATA / RAID 0, 1, 10, 5 / 0 x IDE / 0 x FDD
  • Up to 12 x USB 2.0, 2 x IEEE 1394a
  • 2 x PCI-E X16, 1 x PCI-E X4, 2 x PCI-E X1, 1 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1366 socket:
    • Intel Xeon W3500 series Processor
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel X58
  • Intel ICH10R
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 1333/1066/800 MHz DIMMS
Maximum RAM
16GB
Back Panel I/O
  • 1 x Optical S/PDIF Out
  • 8 x USB 2.0 ports
  • 1 x RJ45 LAN port
  • 1 x IEEE 1394 port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 2 x PCI-Express 2.0 X16
  • 1 x PCI-Express 2.0 X4
  • 2 x PCI-Express X1
  • 1 x PCI
On-Board EIDE/Floppy
No
Integrated SATA/SAS
6 x SATA 3Gb/s
Integrated SATA/SAS RAID
    Intel ICH10R:
    • Supports RAID 0, 1, 5 and 10
Integrated Audio
Realtek ALC889 High Definition audio codec
Integrated Video
No
Integrated LAN
Intel 82567LM Gigabit Ethernet Controller
USB
    Up to 12 x USB ports:
    • 8 x USB ports on Back Panel I/O
    • 4 x USB ports via headers
IEEE 1394
    Up to 2 x IEEE 1394 ports:
    • 1 x IEEE 1394 port on Back Panel I/O
    • 1 x IEEE 1394 port via header
Serial/Parallel Ports
No
PS/2 Ports
No
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Intel
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Intel at (800) 538-3373
  • Technical Support: Intel (800) 538-3373
