SKU: 800-28065F
  • Supports Intel dual-core Pentium D, Pentium 4 Extreme processor
  • Supports up to 8GB DDR2 667/533/400 SDRAM
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA775 socket:
    • Intel Pentium Dual-Core
    • Intel Pentium 4
    • Intel Celeron
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel E7230
  • Intel ICH7-R
Front Side Bus (FSB)
1066 / 800 MHz
System Bios
8Mb Flash EEPROM with AMI BIOS
Number of Memory Slots
4
Type of Memory Supported
240-pin gold-plated Unbuffered ECC DDR2 667/533/400 SDRAM DIMMs
Maximum RAM
8GB
Back Panel I/O
  • 1 x PS/2 Mouse
  • 1 x PS/2 Keyboard
  • 2 x USB ports
  • 1 x Serial port
  • 1 x VGA port
  • 2 x RJ45 ports
Number of PCI/PCI Express Slots
  • 1 x PCI Express X4 slot on a X1 lane
  • 1 x Intel Adaptive Slot (supports PCI Express X8, PCI-X, or PCI riser)
  • 1 x PCI-X 64-bit/133MHz slot
  • 2 x PCI 32-bit/33MHz slots
Number of ISA Slots (16 Bit)
No
On-Board EIDE/Floppy
1 x channel ATA 100 supporting up to 2 IDE devices
Integrated IDE RAID
No
Integrated SATA/SAS
4 x Serial ATA II (3Gb/s) channel supporting RAID 0, 1, and 10
Integrated Audio
No
Integrated Video
ATI ES1000 graphics controller
Integrated LAN
Intel 82551QM Gigabit Ethernet controller
Integrated SCSI
No
USB
2 x USB ports on Back Panel I/O
IEEE 1394
No
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Intel
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Intel at (800) 538-3373
  • Technical Support: Intel (800) 538-3373

Package Contents

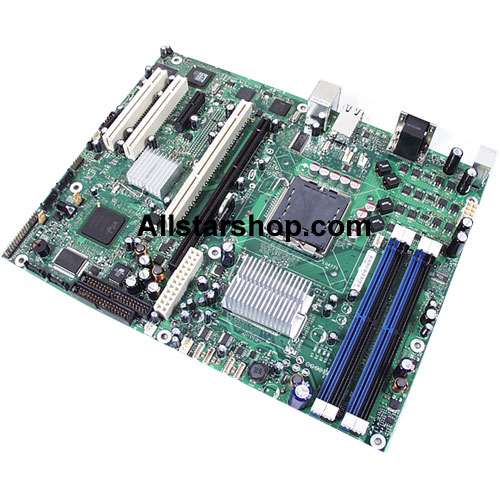

  • 1 x SE7230NH1LX Motherboard
  • Quick Start User Guide
  • Intel Server Managment 8 CD

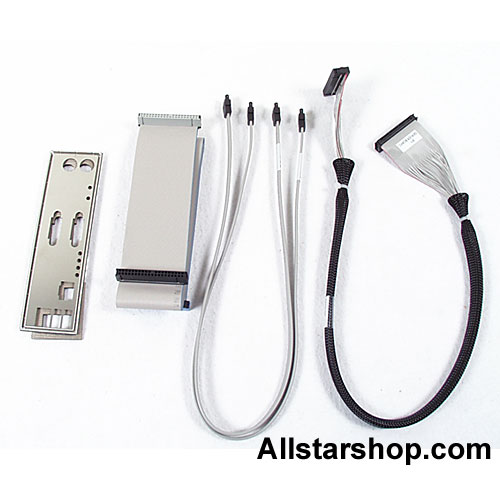

  • Cable kit

  • I/O shield

  • Board-configuration label
