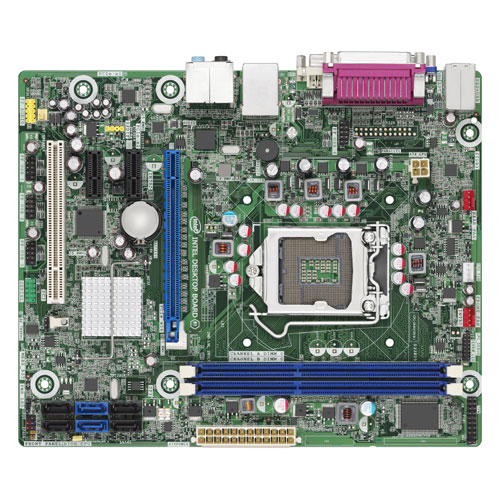

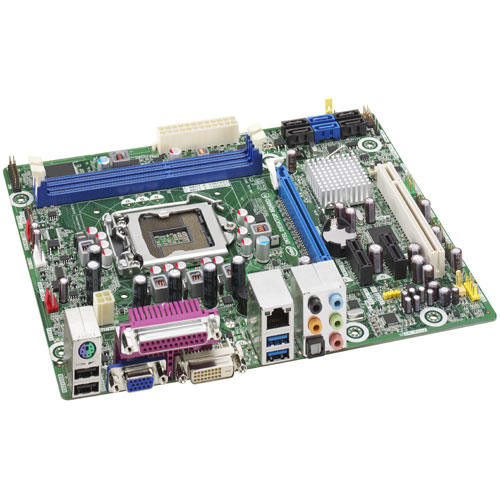

SKU: 800-28004E
  • Integrated Intel Graphics - DVI-D / VGA
  • Max 16GB / 2 Dimm DDR3 1333/1066
  • 2 x SATA 6Gb/s 4 x SATA / 0 x IDE / 0 x FDD
  • Up to 2 x USB 3.0, 10 x USB 2.0
  • 1 x PCI-E X16, 2 x PCI-E X1, 1 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1155 socket:
    • Core i7-2000 processor series
    • Core i5-2000 processor series
Number of Processor (s)
Single (Not Included)
Chipset
Intel H61
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
2
Type of Memory Supported
240-pin DDR3 1333/1066 MHz
Maximum RAM
16GB

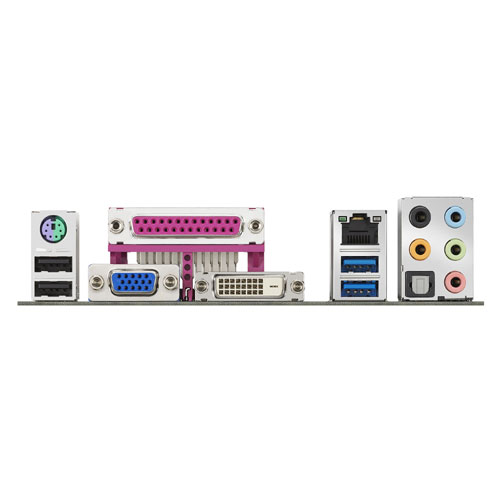

Back Panel I/O
  • 1 x PS/2 keyboard/mouse port
  • 2 x USB 3.0
  • 2 x USB 2.0/1.1
  • 1 x Parallel port
  • 1 x 15-pin VGA
  • 1 x DVI-D
  • 1 x LAN (RJ45) port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCI-Express 2.0 X16
  • 2 x PCI-E 2.0 X1
  • 1 x PCI
On-Board EIDE/Floppy
No
Integrated SATA/SAS
    Intel H61:
    • 4 x SATA 3Gb/s
    Marvell 88SE917X:
    • 2 x SATA 6Gb/s
Integrated SATA/SAS RAID
No
Integrated Audio
Realtek ALC892 High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics
Integrated LAN
Intel 82579V Gigabit Ethernet Controller
USB
    Up to 12 x USB ports:
  • 2 x USB 3.0 ports on Back Panel I/O
  • 2 x USB 2.0 ports on Back Panel I/O
  • 8 x USB 2.0 ports via headers
IEEE 1394
No
Serial/Parallel Ports
  • 1 x Parallel port on Back Panel I/O
  • 1 x Serial port via header
PS/2 Ports
1 x PS/2 keyboard/mouse port
Form Factor
microATX
Dimensions
9.6" x 7.8"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Intel
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Intel at (800) 538-3373
  • Technical Support: Intel (800) 538-3373
