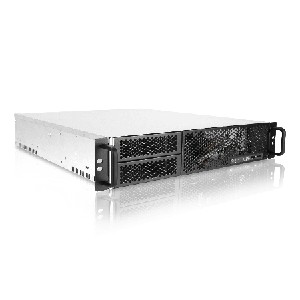

In Win IW-R200-02N In-Win R200-02N 2U Short Depth Server Chassis

In-Win R200-02N 2U Short Depth Server Chassis

Support: (909) 348-0588

In-Win R200-02N 2U Short Depth Server Chassis

SKU:

990-93053

Depth 19.84” of chassis for space-sensitive applications
7-slot low profile rear window
Removable drive cages for easy installation
Support PS/2 PSU

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

What's New

: Crucial P310 500GB PCIe Gen4 NVME 2280 M.2 SSD

: Crucial P310 1TB PCIe Gen4 NVME 2280 M.2 SSD

: Crucial P310 2TB PCIe Gen4 NVME 2280 M.2 SSD

In-Win IW-R200-02N is a 2U rackmount short depth server chassis supporting ATX motherboard. It has two 5.25" external bays and 2 internal drive cage supports four 3.5" HDD/SSD. It can support 7 low-profile cards or 3 full-height add-on cards via an optional PCI card holder and a riser card. It has room for a single ATX PSU or dual redundant 1U PSU.

Description

Specifications

M/B Format

ATX (12” x 9.6”)

Ext. Bay (s)

2x 5.25"

Int. Bay (s)

4x 3.5"

Cooling Fan (s)

Rear: 1x 80mm (installed)

Front: 1x 80mm (installed)

Expansion Slots

7x low-profile

Power Supply

PS/2 Single (Front)

Not included

Dimensions

19.84” (D) x 17.02” (W) x 3.46” (H)

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: In Win
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact In Win at (909) 348-0588
Technical Support: In Win (909) 348-0588

Package Contents

2U chassis
