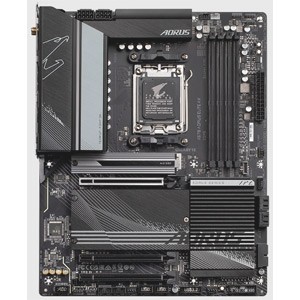

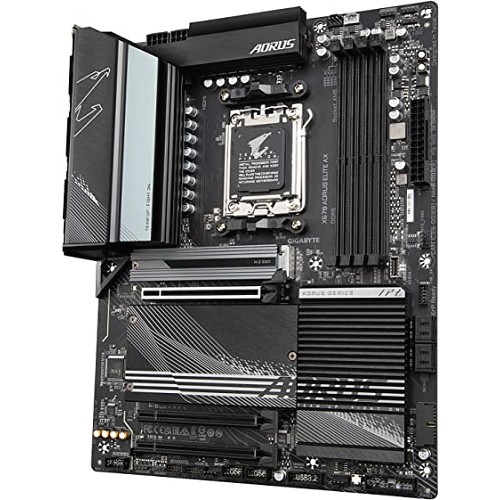

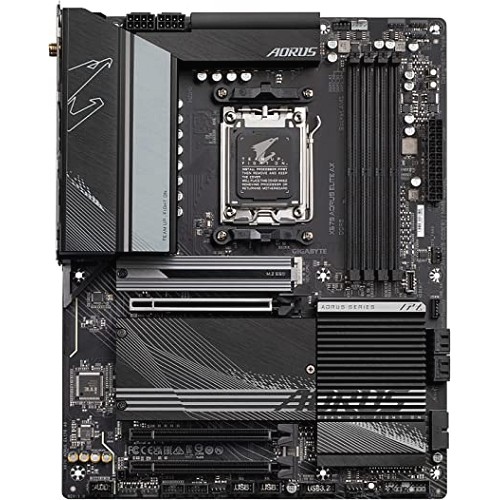

Gigabyte X670 AORUS ELITE AX Socket AM5 ATX Motherboard

Welcome to Allstarshop

This website uses cookies to provide you a personalized web experience. Using this website you agree to our use of cookies. If you require more information, please visit our Privacy Policy. Agree

Gigabyte X670 AORUS ELITE AX Socket AM5 ATX Motherboard

Support: (626) 854-9338

Gigabyte X670 AORUS ELITE AX Socket AM5 ATX Motherboard

SKU:	800-58050F

Integrated Radeon Graphics - HDMI
Max 256GB / 4x DDR5 DIMM / Up to 8000+ (O.C.)
4x SATA 6GB/s, 4x M.2 / RAID 0, 1, 10
Up to 4x USB 3.2 G2 (2x USB-C), 10x USB 3.2 G1, 8x USB 2.0
2 x PCIe 4.0 x16, 1 x PCIe 3.0 x16

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: AMD Ryzen 7 7700X 8-Core 4.5GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 9 7900X 12-Core 4.7GHz /12MB cache AM5 CPU (Retail)

: Kingston Fury Beast 32GB Kit (2x16GB) DDR5-5200 CL36 288-pin DIMM

Gigabyte X670 AORUS ELITE AX motherboard are designed for performance, convenience-driven users and professional designers, and are enhanced by the features of 18+2+2 phases direct digital power design, advanced VRM thermal design, the innovative EZ-Latch design, sets of PCIe 4.0 & SMD PCIe 5.0 M.2 interfaces with thermal armor, blazing fast LAN, and R&D’s adjustment.

Description

Specifications

CPU Support

AMD Ryzen 9000/ 8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD X670

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC & Non-ECC, Un-buffered Memory

Maximum RAM

256GB

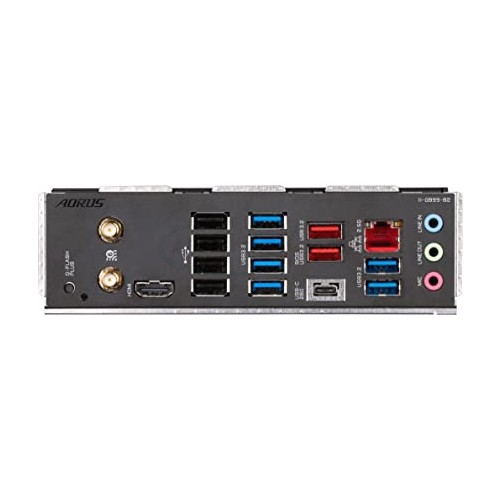

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
2 x USB 3.2 Gen2 Type-A ports
6 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
2 x Antenna connectors

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (max x4)
1 x PCIe 3.0 x16 (max x2)

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 25110/2280 support PCIe 5.0 x4 mode
3 x M.2 socket, with M key, type 22110/2280 support PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Intel 2.5 Gb Ethernet

Integrated Wifi

AMD Wi-Fi 6E & Bluetooth 5.2

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen 2x2 Type-C port via header
2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
6 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
4 x USB 3.2 Gen1 Type-A ports via headers
4 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Gigabyte
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Gigabyte at (626) 854-9338 Or visit Gigabyte customer service online.
Technical Support: Gigabyte (626) 854-9338 or visit Gigabyte technical support online.
