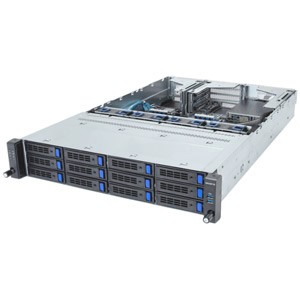

Gigabyte R263-S33-AAF1 C741 XEON LGA4677 2U w/2x 2400W

Support: (626) 854-9338

Gigabyte R263-S33-AAF1 C741 XEON LGA4677 2U w/2x 2400W

SKU:	850-58026A

4th Gen Intel Xeon Scalable Processors
Max 2TB DDR5 4800MHz ECC RDIMM (16 DIMMs)
12x 3.5" bays - Hot Swap - RAID 0/1/10/5
Integrated IPMI 2.0 with KVM and Dedicated LAN

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Intel Xeon Silver 4410T 10-Core 2.7GHz w/26.25MB LGA4677 CPU (Tray)

: Intel Xeon Silver 4410Y 12-Core 2GHz w/30MB LGA4677 CPU (Tray)

: Kingston 64GB DDR5-4800 ECC Reg CL40 2Rx4 288-pin RDIMM

4th Gen Intel Xeon Scalable Processors
Single processor, LGA 4677
8-Channel RDIMM DDR5 per processor, 16 x DIMMs
Dual ROM Architecture supported
1 x 1Gb/s LAN port (Intel® I210-AT)
1 x Dedicated management port
12 x 3.5"/2.5" SATA hot-swappable bays
1 x M.2 slot with PCIe Gen3 x4 interface
3 x FHFL PCIe Gen5 x16 slots
2 x OCP 3.0 Gen5 x16 mezzanine slots
Dual 2400W (240V) 80 PLUS Platinum redundant power supply

Description

4th Gen Intel Xeon Scalable Processors
Single processor, LGA 4677
8-Channel RDIMM DDR5 per processor, 16 x DIMMs
Dual ROM Architecture supported
1 x 1Gb/s LAN port (Intel® I210-AT)
1 x Dedicated management port
12 x 3.5"/2.5" SATA hot-swappable bays
1 x M.2 slot with PCIe Gen3 x4 interface
3 x FHFL PCIe Gen5 x16 slots
2 x OCP 3.0 Gen5 x16 mezzanine slots
Dual 2400W (240V) 80 PLUS Platinum redundant power supply

Specifications

Server Case Form Factor

2U
17.32" x 3.44" x 27.55"

Processor

4th Gen Intel Xeon Scalable processors
Single (Not Included)
Up to 350W

Chipset

Intel C741

Bios

AMI

Type of Memory Supported

DDR5-4800/4400MHz ECC RDIMM

Maximum Memory Supported

2TB

Number of Memory Slots

Slots

3 x FHHL PCIe Gen5 x16
2 x PCIe Gen5 x16 OCP 3.0

Rear I/O Ports

2 x USB 3.2 Gen1
1 x Mini-DP
1 x RJ45 LAN
1 x RJ-45 Mgmt LAN

Video

Aspeed AST2600

LAN

Intel i210-AT Gigabit LAN
1 x Dedicated IPMI LAN

Ext. Drive Bays

12 x 3.5"/2.5" SATA hot-swappable bays

Power

Redundant Platinum 2400W Power Supplies

Manageability

IPMI 2.0

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Gigabyte
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Gigabyte at (626) 854-9338 Or visit Gigabyte customer service online.
Technical Support: Gigabyte (626) 854-9338 or visit Gigabyte technical support online.

Package Contents

1 x R263-S33
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
3 x Carrier clips
1 x Rail kit

Compatible Accessories

CPU

Intel Xeon Silver 4410T 10-Core 2.7GHz w/26.25MB LGA4677 CPU (Tray)

10x Cores / 20x Threads / Turbo Boost: 4.0 GHz
Supported Memory: DDR5-4000
Max # of PCIe 5.0 Lane: 80
TDP: 150W

Manufacturer: Intel

Mfg P/N: PK8071305121601

Availability: Temporarily out of stock

Intel Xeon Silver 4410Y 12-Core 2GHz w/30MB LGA4677 CPU (Tray)

12x Cores / 24x Threads / Turbo Boost: 3.9 GHz
Supported Memory: DDR5-4000
Max # of PCIe 5.0 Lane: 80
TDP: 150W

Manufacturer: Intel

Mfg P/N: PK8071305120002

Availability: Usually ships same day

Memory

Kingston 64GB DDR5-4800 ECC Reg CL40 2Rx4 288-pin RDIMM

PC5-38400
Dual-rank x4
ECC RDIMM

Manufacturer: Kingston

Mfg P/N: KSM48R40BD4TMM-64HMR

Availability: Usually ships with 1-2 business days
