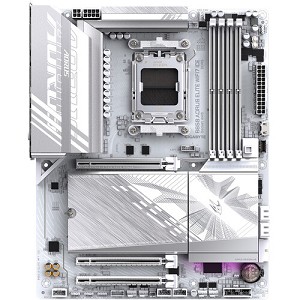

Gigabyte B850 AORUS ELITE WIFI7 ICE AMD B850 AM5 ATX Motherboard

Support: (626) 854-9338

Gigabyte B850 AORUS ELITE WIFI7 ICE AMD B850 AM5 ATX Motherboard

SKU:	800-58095F

Integrated Radeon Graphics - HDMI, DisplayPort
Max 256GB / 4x DDR5 DIMM / Up to 8200 (O.C.)
4x SATA 6GB/s, 3 M.2 / RAID 0, 1, 10
Up to 4x USB 3.2 G2 (2x USB-C), 7x USB 3.2 G1, 8x USB 2.0
1x PCIe 5.0 x16, 2x PCIe 3.0 x16 (x1)

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: AMD Ryzen 7 9700X 8-Core 3.8GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 7 9800X3D 8-Core 4.7GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 9 9900X 12-Core 4.4GHz /12MB cache AM5 CPU (Retail)

The B850 AORUS ELITE WIFI7 ICE supports AMD AM5 Processors and features unparalleled performance. With four DDR5 slots, one PCIe 5.0 x16 slot, three M.2 slots, and four SATA slots, this motherboard can provide user a PC DIY friendly solution.

Description

Specifications

CPU Support

AMD Ryzen 9000/ 8000/ 7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD B850

System Bios

UEFI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

Up to DDR5-8200+(O.C) ECC/non-ECC, un-buffered Memory

Maximum RAM

256GB

Back Panel I/O

1 x USB 3.2 Gen2 Type-C port
2 x USB 3.2 Gen2 Type-A ports
3 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0 Type-A ports
1 x DisplayPort
1 x RJ45 LAN
1 x Audio I/O
2 x antenna connectors

Number of PCI/PCI-Express Slots

1 x PCIe x16
- AMD Ryzen 9000/7000: PCIe 5.0 x16
- AMD Ryzen 8000: PCIe 4.0 x8 (Phoenix 1)
- AMD Ryzen 8000: PCIe 4.0 x4 (Phoenix 2)
2 x PCIe 3.0 x16 (x1 electrical)

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

AMD Ryzen 9000/7000:
- 1 x M.2 with M key, type 2280/2110/2580/25110 supports PCIe 5.0 x4
- 2 x M.2 with M key, type 2280/2110/2580/25110 supports PCIe 4.0 x4
AMD Ryzen 8000:
- 2 x M.2 with M key, type 2280/2110/2580/25110 supports PCIe 4.0 x4
- 1 x M.2 with M key, type 2280/2110/2580/25110 supports PCIe 4.0 x2

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek 7.1 CH HD Audio

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 2.5GbE LAN

Integrated Wifi

Realtek Wi-Fi 7 RTL8922AE & BLUETOOTH 5.4

USB

1 x USB 3.2 Gen 2x2 Type-C port via header
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
1 x USB 3.2 Gen1 Type-A port on Back Panel I/O
6 x USB 3.2 Gen1 ports via header
4 x USB 2.0 Type-A ports on Back Panel I/O
4 x USB 2.0 ports via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Gigabyte
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Gigabyte at (626) 854-9338 Or visit Gigabyte customer service online.
Technical Support: Gigabyte (626) 854-9338 or visit Gigabyte technical support online.
