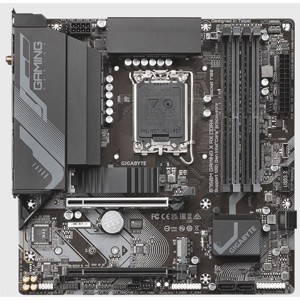

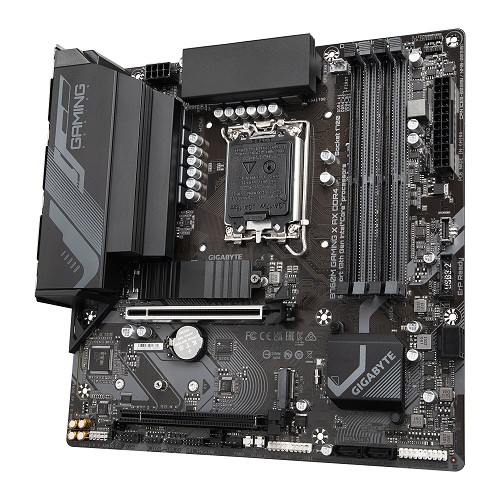

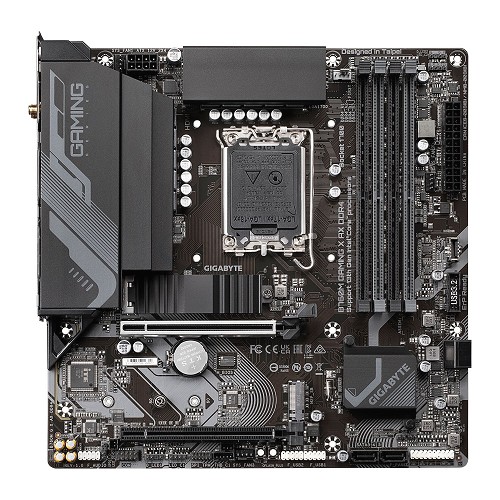

Gigabyte B760M GAMING X AX DDR4 B760 LGA1700 mATX Motherboard

Support: (626) 854-9338

Gigabyte B760M GAMING X AX DDR4 B760 LGA1700 mATX Motherboard

SKU:	800-58065F

Integrated Intel Graphics - HDMI / DisplayPort
Max 128GB / 4x DDR4 DIMM / Up to 5333(O.C.)
4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
1x USB 3.2 G2 (1x USB-C), 5x USB 3.2 G1, 9x USB 2.0
1 x PCIe 4.0 x16, 1x PCIe 3.0 x16

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Intel Core i5-13500 14-Core LGA1700 w/24MB cache CPU (BOX)

: Intel Core i7-13700 16-Core LGA1700 w/30MB cache CPU (BOX)

: Kingston Fury Beast 16GB DDR4-3200 CL16 1Rx8 288-pin DIMM

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel B760 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR4-5333(O.C.) / 5066(O.C.) / 5000(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4000(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 Non-ECC, Un-buffered Memory

Maximum RAM

128GB

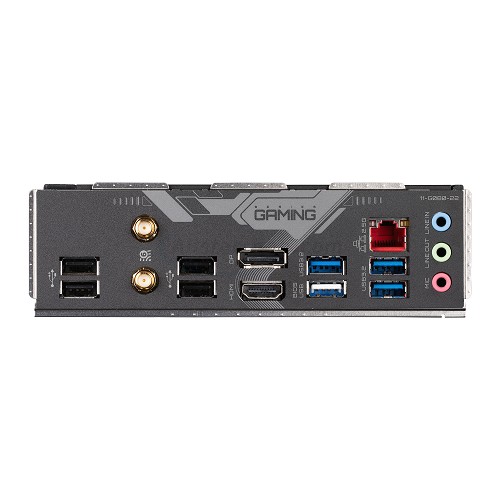

Back Panel I/O

3 x USB 3.2 Gen1 Type-A ports
5 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
2 x Antenna connectors

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (max x4)

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2280 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2280/22110 supports PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek 7.1 CH HD Audio Codec

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

RTL8125BG 2.5Gb Ethernet

Integrated Wifi

Wi-Fi 6E & Bluetooth 5.3

USB

1 x USB 3.2 Gen2 Type-C port via header
3 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports vfia header
5 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Serial/Parallel Ports

1 x Serial port via header

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Gigabyte
