SKU: 800-58061F
  • Integrated Intel Graphics - HDMI / DisplayPort / VGA
  • Max 128GB / 4x DDR4 DIMM / Up to 5333(O.C.)
  • 4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • 1x USB 3.2 G2 (1x USB-C), 5x USB 3.2 G1, 6x USB 2.0
  • 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B760 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4-5333(O.C.) / 5066(O.C.) / 5000(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4000(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 Non-ECC, Un-buffered Memory
Maximum RAM
128GB

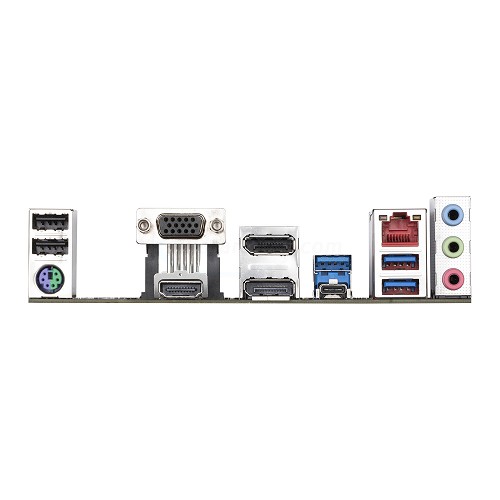

Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse
  • 1 x USB 3.2 Gen2 Type-C port
  • 3 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x VGA
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
2 x M.2 socket, with M key, type 2280 support PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Realtek 2.5Gb Ethernet
USB
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 3 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 2 x USB 2.0 on Back Panel I/O
  • 4 x USB 2.0 via headers
Serial/Parallel Ports
  • 1 x Serial port via header
  • 1 x Parallel port via hader
PS/2 Ports
1 x PS/2 Keyboard/Mouse port
Form Factor
Micro ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

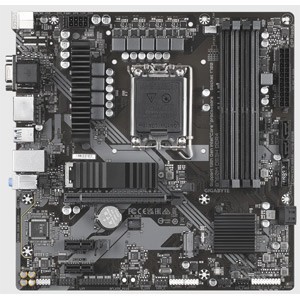

  • Gigabyte B760M DS3H DDR4 motherboard
  • User Manual
  • 1 x I/O Shield
  • 2 x SATA cables
