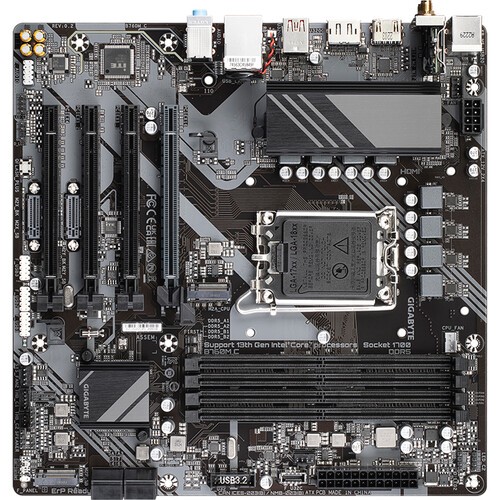

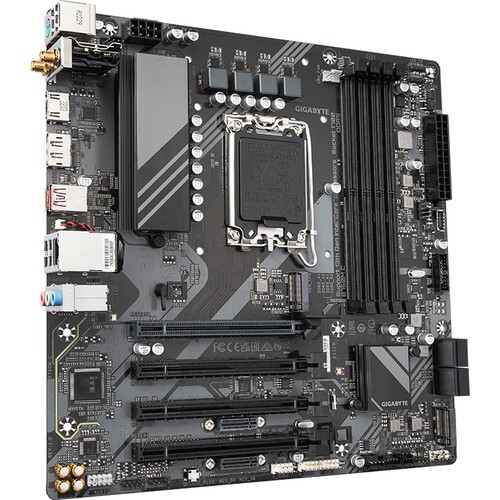

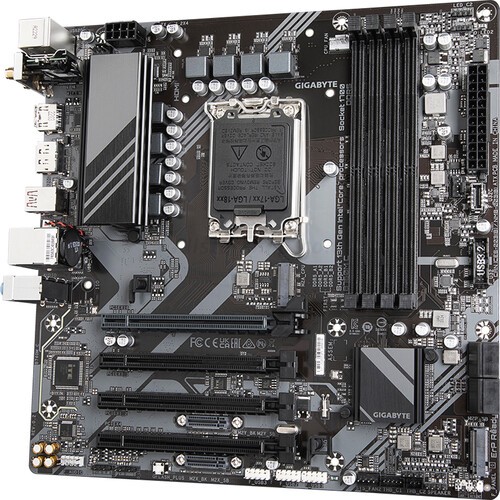

Gigabyte B760M C B760 LGA1700 mATX Motherboard - (Discontinued)

Support: (626) 854-9338

Gigabyte B760M C B760 LGA1700 mATX Motherboard - (Discontinued)

SKU:	800-58072F

Integrated Intel Graphics - HDMI / DisplayPort
Max 192GB / 4x DDR5 DIMM / Up to 7600(O.C.)
4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
2x USB 3.2 G2 (1x USB-C), 3x USB 3.2 G1 (1x USB-C ), 10x USB 2.0
1x PCIe 4.0 x16, 3x PCIe 3.0 x16

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Intel Core i5-13400 10-Core LGA1700 w/20MB cache CPU (BOX)

: Intel Core i5-13500 14-Core LGA1700 w/24MB cache CPU (BOX)

: Intel Core i7-13700 16-Core LGA1700 w/30MB cache CPU (BOX)

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel B760 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-7600(O.C.) / 7400(O.C.) /7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) /6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory

Maximum RAM

192GB

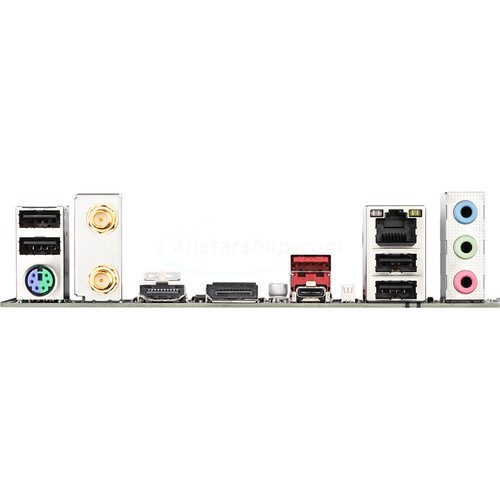

Back Panel I/O

1 x PS/2 Keyboard/Mouse port
1 x USB 3.2 Gen 2x2 Type-C port
1 x USB 3.2 Gen2 Type-A port
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
2 x Antenna connectors

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (max x4)
2 x PCIe 3.0 x16 (max x1)

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2280 supports PCIe 4.0 x4 mode
2 x M.2 socket, with M key, type 2280 support PCIe 3.0 x1 mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek 7.1 CH HD Audio Codec

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Realtek Gb Ethernet

Integrated Wifi

802.11 ac & Bluetooth v4.2

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
1 x USB 3.2 Gen1 Type-C port via header
2 x USB 3.2 Gen1 via header
4 x USB 2.0 on Back Panel I/O
6 x USB 2.0 via headers

PS/2 Ports

1 x PS/2 Keyboard/Mouse port

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Gigabyte
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Gigabyte at (626) 854-9338 Or visit Gigabyte customer service online.
Technical Support: Gigabyte (626) 854-9338 or visit Gigabyte technical support online.
