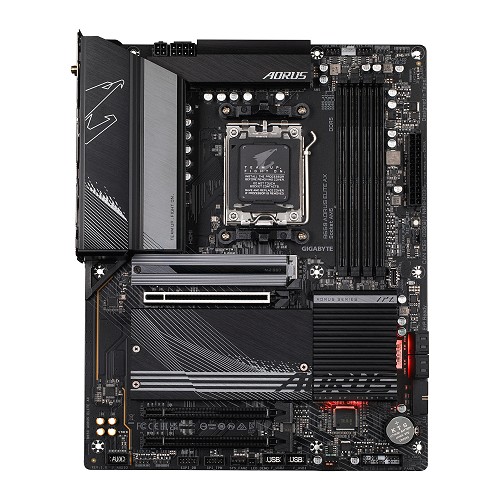

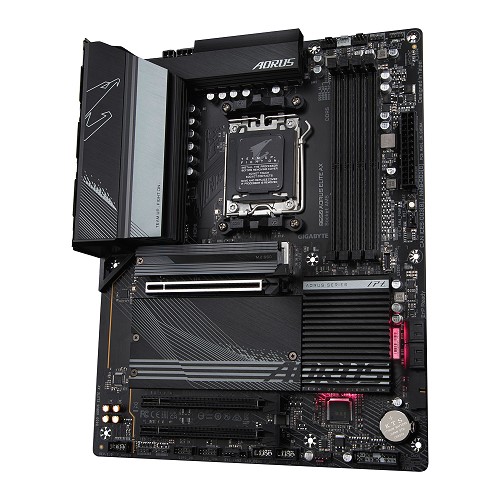

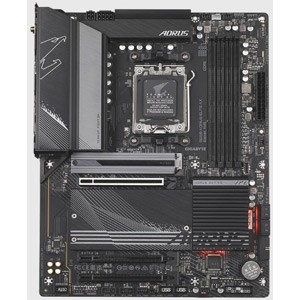

Gigabyte B650 AORUS ELITE AX Socket AM5 ATX Motherboard

Support: (626) 854-9338

Gigabyte B650 AORUS ELITE AX Socket AM5 ATX Motherboard

SKU:	800-58053F

Integrated Radeon Graphics - HDMI / DisplayPort
Max 256GB / 4x DDR5 DIMM / Up to 8000 (O.C.)
4x SATA 6GB/s, 3x M.2 / RAID 0, 1, 10
4x USB 3.2 G2 (2x USB-C), 7x USB 3.2 G1, 8x USB 2.0
1x PCIe 4.0 x16, 2x PCIe 3.0 x16

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: AMD Ryzen 7 7700X 8-Core 4.5GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 9 7900X 12-Core 4.7GHz /12MB cache AM5 CPU (Retail)

: Kingston Fury Beast 32GB Kit (2x16GB) DDR5-5200 CL36 288-pin DIMM

Gigabyte B650 AORUS ELITE AX adopts PCIe 4.0 x16 graphics interface and PCIe 5.0 / 4.0 M.2 slots with EZ-Latch technology, making it easier than ever for users to upgrade graphics cards and M.2 SSDs, avoiding accidental damage to the surrounding components. With 14+2+1 phase Twin Digital power, 105Amps Smart Power Stage provide increased stability, optimal compatibility, and performance for AMD Ryzen 7000 series processors.

Description

Specifications

CPU Support

AMD Ryzen 9000/ 8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD B650

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC & Non-ECC, Un-buffered Memory

Maximum RAM

256GB

Back Panel I/O

1 x USB 3.2 Gen2 Type-C port
2 x USB 3.2 Gen2 Type-A ports
5 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
2 x SMA antenna connectors

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
2 x PCIe 3.0 x16 (max x1)

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2280/25110 support PCIe 5.0 x4 mode
1 x M.2 socket, with M key, type 2280/22110 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2280/25110 support PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 2.5 Gb Ethernet

Integrated Wifi

Wi-Fi 6E & Bluetooth 5.3

USB

1 x USB 3.2 Gen 2x2 Type-C port via header
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
5 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
4 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Gigabyte
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Gigabyte at (626) 854-9338 Or visit Gigabyte customer service online.
Technical Support: Gigabyte (626) 854-9338 or visit Gigabyte technical support online.
