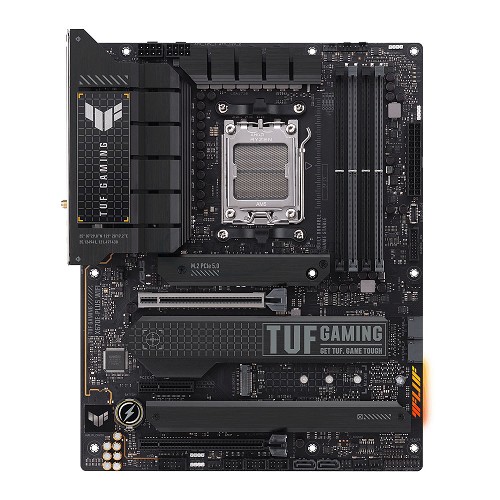

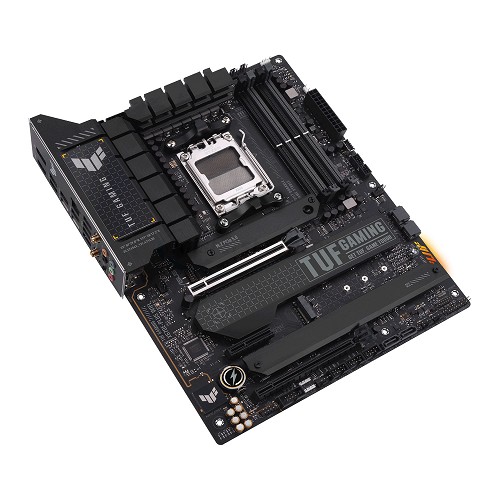

Asus TUF GAMING X670E-PLUS WIFI AMD X670E Socket AM5 ATX Motherboard

Support: (812)282-2787

Asus TUF GAMING X670E-PLUS WIFI AMD X670E Socket AM5 ATX Motherboard

SKU:	800-51170E

Integrated Radeon Graphics - HDMI / DisplayPort
Max 192GB / 4x DDR5 DIMM / Up to 8000+ (O.C.)
4x SATA 6GB/s, 4x M.2 / RAID 0, 1, 10
Up to 6x USB 3.2 G2 (3x USB-C), 7x USB 3.2 G1, 6x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1 x PCIe 4.0 x4

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: AMD RYZEN 5 7600X 6-Core 4.7GHz /6MB cache AM5 CPU (Retail)

: AMD Ryzen 7 7700X 8-Core 4.5GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 9 7900X 12-Core 4.7GHz /12MB cache AM5 CPU (Retail)

The TUF Gaming X670E-Plus WiFi shares many of the same next-gen features as the higher-end ROG Crosshair and ROG Strix boards. A PCIe Gen 5.0 x16 slot lets you install the highest-end graphics cards of today and tomorrow. A total of four M.2 slots, one wired for PCIe 5.0, two for PCIe 4.0, and one for PCIe 3.0, let you set up a spacious and speedy storage system.

Description

Specifications

CPU Support

AMD Ryzen 9000/ 8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD X670E

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory

Maximum RAM

192GB

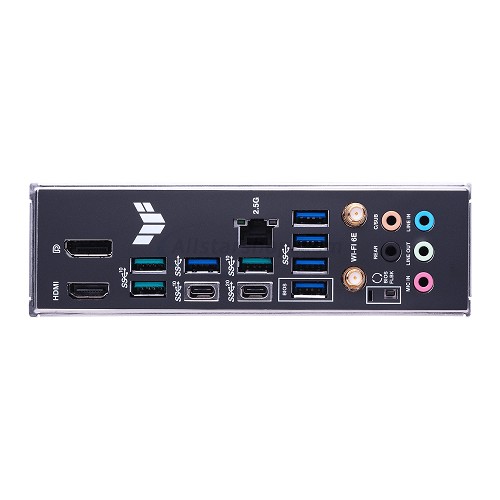

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
1 x USB 3.2 Gen2 Type-C port
3 x USB 3.2 Gen2 Type-A ports
5 x USB 3.2 Gen1 Type-A ports
1 x HDMI
1 x DisplayPort
1 x RJ45 LAN
1 x Audio I/O
1 x Wi-Fi Module

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (max x4)
1 x PCIe 4.0 x4

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 5.0 x4 mode
2 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 3.0 x4 & SATA mode

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 2.5 Gb Ethernet

Integrated Wifi

2x2 Wi-Fi 6E & Bluetooth v5.2

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port via header
3 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
5 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via headers
6 x USB 2.0

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
