Asus TUF GAMING B760M-BTF WIFI B760 LGA1700 mATX Motherboard

Support: (812)282-2787

Asus TUF GAMING B760M-BTF WIFI B760 LGA1700 mATX Motherboard

SKU:	800-51189E

Integrated Intel Graphics - HDMI / DisplayPort
Max 192GB / 4x DDR5 DIMM / Up to 7200+(OC)
4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
4x USB 3.2 G2 (3x USB-C), 5x USB 3.2 G1, (1x USB-C) 8x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 4.0 x1

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: Intel Core i9-12900K 16-Core LGA1700 w/30MB cache CPU (BOX)

: Intel Core i9-14900K 24-Core LGA1700 w/36MB cache CPU (BOX)

: Crucial 32GB DDR5-5600 PC5-44800 CL46 288-pin UDIMM

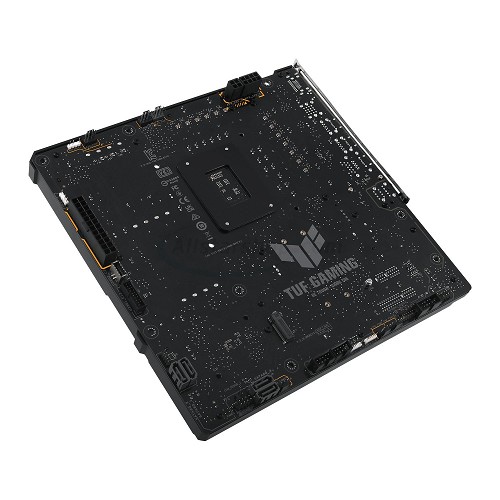

The TUF GAMING B760M-BTF WIFI takes all the essential elements of the latest Intel Core processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the BTF series hides its connectors on the underside of the motherboard for clean cable management and a minimalist build appearance.

This motherboard is engineered with military-grade components, an upgraded power solution and a comprehensive cooling system so that it can go beyond expectations with rock-solid performance and marathon gaming. This platform delivers the power and connectivity that advanced AI PC applications demand.

Description

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel B760 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Maximum RAM

192GB

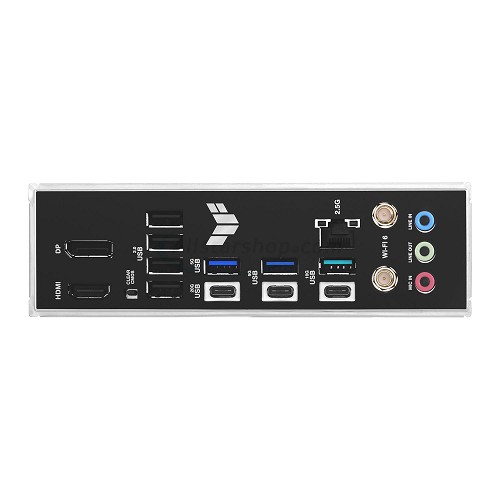

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
1 x USB 3.2 Gen2 Type-A port
1 x USB 3.2 Gen2 Type-C port
2 x USB 3.2 Gen1 Type-A ports
1 x USB 3.2 Gen1 Type-C port
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
1 x Wi-Fi Module

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (max x4)
1 x PCIe 4.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2280 supports PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated LAN

Realtek 2.5Gb Ethernet

Integrated Wifi

2x2 Wi-Fi 6 & Bluetooth v5.2

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port via header
2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
1 x USB 3.2 Gen1 Type-C port on Back Panel I/O
2 x USB 3.2 Gen1 ports via header
4 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
