SKU: 800-51181C
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 128GB / 4x DDR5 DIMM / Up to 7200(O.C.)
  • 4x SATA 6Gb/s, 5x M.2 / RAID 0, 1, 5, 10
  • 9x USB 3.2 G2 (3x USB-C), 8x USB 3.2 G1, 4x USB 2.0
  • 1x PCIe 5.0 x16, 2x PCIe 4.0 x16, 1x PCIe 3.0 x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z790 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(.). / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory
Maximum RAM
128GB
Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port
  • 1 x USB 3.2 Gen2 Type-C port
  • 6 x USB 3.2 Gen2 Type-A ports
  • 4 x USB 3.2 Gen1 Type-A ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 1 x Wi-Fi Module
Number of PCI/PCI-Express Slots
  • 1 x PCIe 5.0 x16
  • 2 x PCIe 4.0 x16 (max x4)
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 5.0 x4 mode
  • 3 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 & SATA mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel 2.5Gb Ethernet
Integrated Wifi
2x2 Wi-Fi 6E & Bluetooth v5.3
USB
  • 1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port via header
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 6 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports via headers
  • 4 x USB 2.0 via headers
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

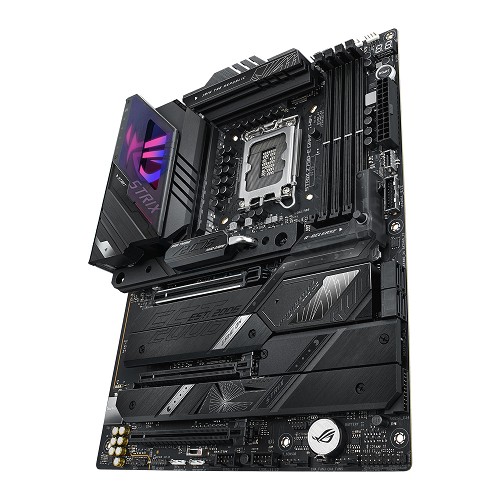

  • Asus ROG STRIX Z790-E GAMING WIFI motherboard
  • User Manual
  • 2 x SATA cables
  • 1 x DDR5 Fan holder
  • 1 x VRM Fan holder
  • 1 x Thermal pad for M.2
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties package
  • 1 x M.2 backplate Q-Latch package
  • 1 x M.2 Q-Latch package
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix thank you card
  • 2 x M.2 Rubber Packages
  • 1 x M.2 backplate Rubber
