Asus ROG STRIX Z790-E GAMING WIFI II Z790 LGA1700 ATX Motherboard

Support: (812)282-2787

Asus ROG STRIX Z790-E GAMING WIFI II Z790 LGA1700 ATX Motherboard

SKU:	800-51050H

Integrated Intel Graphics - HDMI / DisplayPort
Max 192GB / 4x DDR5 DIMM / Up to 8000(O.C.)
4x SATA 6Gb/s, 5x M.2 / RAID 0, 1, 5, 10
13x USB 3.2 G2 (3x USB-C), 4x USB 3.2 G1, 6x USB 2.0
1x PCIe 5.0 x16, 2x PCIe 4.0 x16

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Intel Core i5-14600K 14-Core LGA1700 w/24MB cache CPU (BOX)

: Intel Core i7-14700K 20-Core LGA1700 w/33MB cache CPU (BOX)

: Intel Core i9-14900K 24-Core LGA1700 w/36MB cache CPU (BOX)

Style and substance come together like never before in the feature-packed ROG Strix Z790-E II. From its vibrant multi-layered I/O shroud to its stacks of VRM cooling, it is a conversation piece that also delivers enhanced DDR5 performance, ample PCIe 5.0 slots and the DIY-friendly Q-Design feature set that makes building and upgrading a breeze.

Description

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel Z790 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-8000+(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(.). / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory

Maximum RAM

192GB

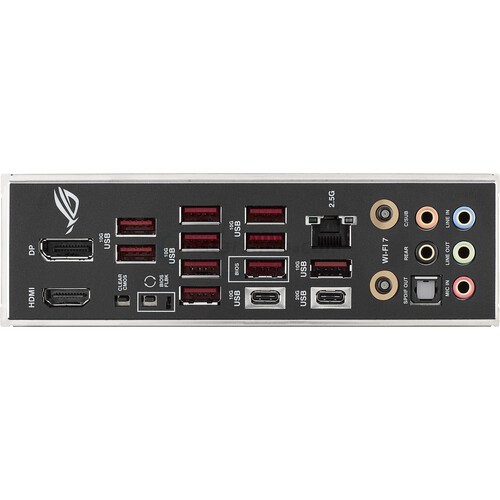

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
1 x USB 3.2 Gen2 Type-C port
10 x USB 3.2 Gen2 Type-A ports
1 x HDMI
1 x DisplayPort
1 x RJ45 LAN
1 x Audio I/O
1 x Wi-Fi Module

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
2 x PCIe 4.0 x16 (max x4)

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 5.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
2 x M.2 socket, with M key, type 2280 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 & SATA mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Intel 2.5Gb Ethernet

Integrated Wifi

Intel 2x2 Wi-Fi 7 & Bluetooth v5.4

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen 2x2 Type-C port via header
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
10 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
4 x USB 3.2 Gen1 Type-A ports via headers
6 x USB 2.0 via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
