SKU: 800-51007F
  • Integrated Radeon Graphics - HDMI, 2x USB-C 4.0
  • Max 192GB / 4x DDR5 DIMM / Up to 8000+ (O.C.)
  • 4x SATA 6GB/s, 5x M.2 / RAID 0, 1, 10, 5
  • Up to 2x USB4-C, 12x USB 3.2 G2 (3x USB-C), 4x USB 3.2 G1, 6x USB 2.0
  • 1x PCIe 5.0 x16, 1x PCIe 4.0 x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
AMD Ryzen 9000/ 8000/7000 series processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD X870E
System Bios
UEFI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory
Maximum RAM
192GB
Back Panel I/O
  • 2 x USB4 Type-C ports
  • 1 x USB 3.2 Gen 2x2 Type-C port
  • 1 x USB 3.2 Gen2 Type-A port
  • 9 x USB 3.2 Gen2 Type-A ports
  • 1 x HDMI
  • 1 x RJ45 5 GbE
  • 1 x Wi-Fi module
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 2 x M.2 with M key, type 2242/2260/2280 support PCIe 5.0 x4 mode
  • 1 x M.2 with M key, type 2242/2260/2280/22110 supports PCIe 5.0 x4 mode
  • 2 x M.2 with M key, type 2280 support PCIe 4.0 x4 mode
Integrated Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek 5Gb Ethernet
Integrated Wifi
Wi-Fi 7 (802.11be) & Bluetooth v5.4
USB
  • 2 x USB4 Type-C ports on Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port via header
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 9 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 port via headers
  • 6 x USB 2.0 via headers
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

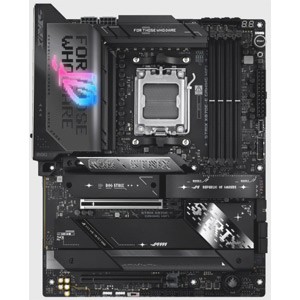

  • Asus ROG STRIX X870E-E GAMING WIFI motherboard
  • Quick start guide
  • 1 x USB drive with utilities and drivers
  • 2 x SATA 6Gb/s cables
  • 1 x Thermal pad for M.2 22110
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties pack
  • 1 x M.2 Q-Latch package
  • 2 x M.2 Q-Slides
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 5 x M.2 Rubbers
