SKU: 800-51179E
  • Integrated Radeon Graphics - HDMI
  • Max 96GB / 2x DDR5 DIMM / Up to 8000+ (O.C.)
  • 2x SATA 6GB/s, 2x M.2 / RAID 0, 1
  • Up to 2x USB 4 (2x USB-C), 7x USB 3.2 G2 (2x USB-C), 7x USB 3.2 G1,
  • 1x PCIe 5.0 x16
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
AMD Ryzen 9000/ 8000/7000 series processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD X670E
System Bios
UEFI AMI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
2
Type of Memory Supported
DDR5-8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
Maximum RAM
96GB

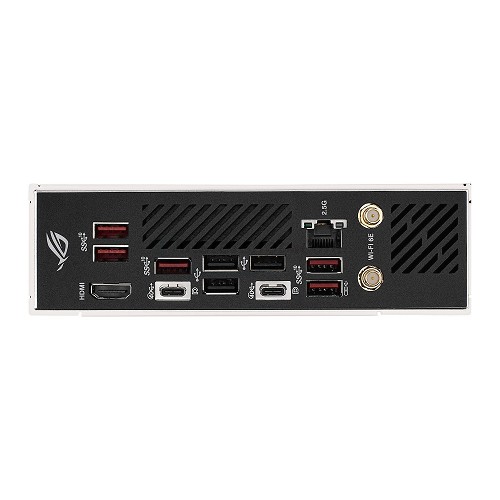

Back Panel I/O
  • 2 x USB 4.0 Type-C ports
  • 5 x USB 3.2 Gen2 Type-A ports
  • 3 x USB 2.0
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Wi-Fi Module
Number of PCI/PCI-Express Slots
1 x PCIe 5.0 x16
Integrated SATA/SAS
2 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2280 supports PCIe 5.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1
Integrated Audio
ROG ALC4050 High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Intel 2.5 Gb Ethernet
Integrated Wifi
2x2 Wi-Fi 6E & Bluetooth v5.2
USB
  • 2 x USB 4.0 Type-C ports on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port via header
  • 1 x USB 3.2 Gen2 Type-C port via ROG STRIX HIVE
  • 5 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 3 x USB 2.0 on Back Panel I/O
  • 3 x USB 2.0 via ROG FPS-II C
  • 1 x USB 2.0 via ROG STRIX HIVE
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • Asus ROG STRIX X670E-I GAMING WIFI motherboard
  • User Manual
  • 2 x SATA cables
  • 1 x Thermal pad for M.2
  • 1 x Rubber Package for M.2
  • 1 x Q-Latch package for M.2
  • 1 x ROG USB2.0 splitter cable
  • 1 x Panel Cable
  • 1 x ROG FPS-II Card
  • 1 x ROG STRIX HIVE
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties pack
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix thank you card
  • 1 x USB Type-C power connection cable

Compatible Accessories

CPU

AMD Ryzen 7 7700X 8-Core 4.5GHz /8MB cache AM5 CPU (Retail)
  • 8x Cores / 16x Threads / Turbo CORE SPEED: Up to 5.4 GHz
  • AMD Radeon Graphics
  • TDP: 105W
  • Heatsink/Fan: Not Included
Manufacturer: AMD
Mfg P/N: 100-100000591WOF
Availability: Usually ships with 1-2 business days
AMD Ryzen 9 7900X 12-Core 4.7GHz /12MB cache AM5 CPU (Retail)
  • 12x Cores / 24x Threads / Turbo CORE SPEED: Up to 5.6 GHz
  • AMD Radeon Graphics
  • TDP: 170W
  • Heatsink/Fan: Not Included
Manufacturer: AMD
Mfg P/N: 100-100000589WOF
Availability: Usually ships with 1-2 business days

Memory

Kingston Fury Beast 32GB Kit (2x16GB) DDR5-5200 CL36 288-pin DIMM
  • PC5-41600
  • Single-Rank x8
  • Default PnP: DDR5-4800 CL40-39-39 @ 1.1V
  • EXPO Profile #0: DDR5-5200 CL36-40-40 @1.25V
  • EXPO Profile #1: DDR5-4800 CL38-38-38 @1.1V
Manufacturer: Kingston
Mfg P/N: KF552C36BBEK2-32
Availability: Usually ships with 1-2 business days
Kingston Fury Beast 32GB Kit (2x16GB) DDR5-5600 CL36 288-pin DIMM
  • PC5-44800
  • Single-Rank x8
  • Default PnP: DDR5-4800 CL40-39-39 @ 1.1V
  • EXPO Profile #0: DDR5-5600 CL36-38-38 @1.25V
  • EXPO Profile #1: DDR5-5200 CL40-40-40 @1.25V
Manufacturer: Kingston
Mfg P/N: KF556C36BBEK2-32
Availability: Usually ships with 1-2 business days
